SS6006-ZZ
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability
Image is for illustration purposes only.
What SS6006-ZZ means
| Code | Position | Meaning |
|---|---|---|
SS |
Material | Stainless steel rings and balls |
6 |
Type | Deep groove ball bearing |
0 |
Diameter series | Diameter series 0 (extra light): fixes OD and width for the bore (ISO 15) |
06 |
Bore | Bore code 06 × 5 = 30 mm |
ZZ |
Closure | Metal shields, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
SS6006-ZZ specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 30 mm | 1.1811 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 55 mm | 2.1654 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 13 mm | 0.5118 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Metal shields, both sides | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
| Material | Stainless steel rings and balls | Stated by the designation | |
SS6006-ZZ is a deep groove ball bearing, 30 mm bore × 55 mm OD × 13 mm wide (1.1811 × 2.1654 × 0.5118 in). It has metal shields on both sides and stainless steel rings and balls.
The SS6006-ZZ is a metric series single row deep groove ball bearing constructed from stainless steel with double metal shields (ZZ) on both sides. The shields provide protection against contaminants while retaining lubrication, making this bearing suitable for environments where corrosion resistance is required.

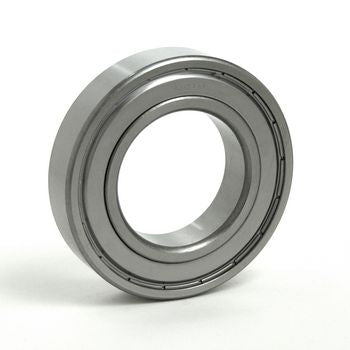

SS6006 ZZ Metric Series Stainless Steel Ball Bearing
