RMS9-2RS
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$34.80 USD
Regular price
Sale price
$34.80 USD
Unit price
per
Couldn't load pickup availability
Bore1-1/8 in
28.57 mm
Outside dia.2-3/16 in
55.56 mm
Width3/4 in
19.05 mm
TypeInch-dimension radial ball bearing, medium series
SealingContact rubber seals, both sides
Flat-rate shipping — calculated by weight at checkout
Image is for illustration purposes only.
What RMS9-2RS means
| Code | Position | Meaning |
|---|---|---|
RMS |
Type | Inch-dimension radial ball bearing, medium series |
9 |
Bore | Bore in eighths of an inch: 9/8 = 1-1/8 in |
2RS |
Closure | Contact rubber seals, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
RMS9-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 28.57 mm | 1-1/8 in (1.125) | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 55.56 mm | 2-3/16 in (2.1875) | Two independent catalogue sources agree |
| Width (B) | 19.05 mm | 3/4 in (0.75) | Two independent catalogue sources agree |
| Bearing type | Inch-dimension radial ball bearing, medium series | Stated by the designation | |
| Seals / shields | Contact rubber seals, both sides | Stated by the designation | |
RMS9-2RS is an inch-dimension radial ball bearing, medium series, 1-1/8 in bore × 2-3/16 in OD × 3/4 in wide (28.57 × 55.56 × 19.05 mm). It has rubber contact seals on both sides.
The RMS9-2RS is a double-sealed ball bearing from the RMS series, featuring rubber seals on both sides (2RS) to protect against contaminant ingress and retain lubrication. This sealed design makes it suitable for applications where maintenance access is limited or environmental protection is required.

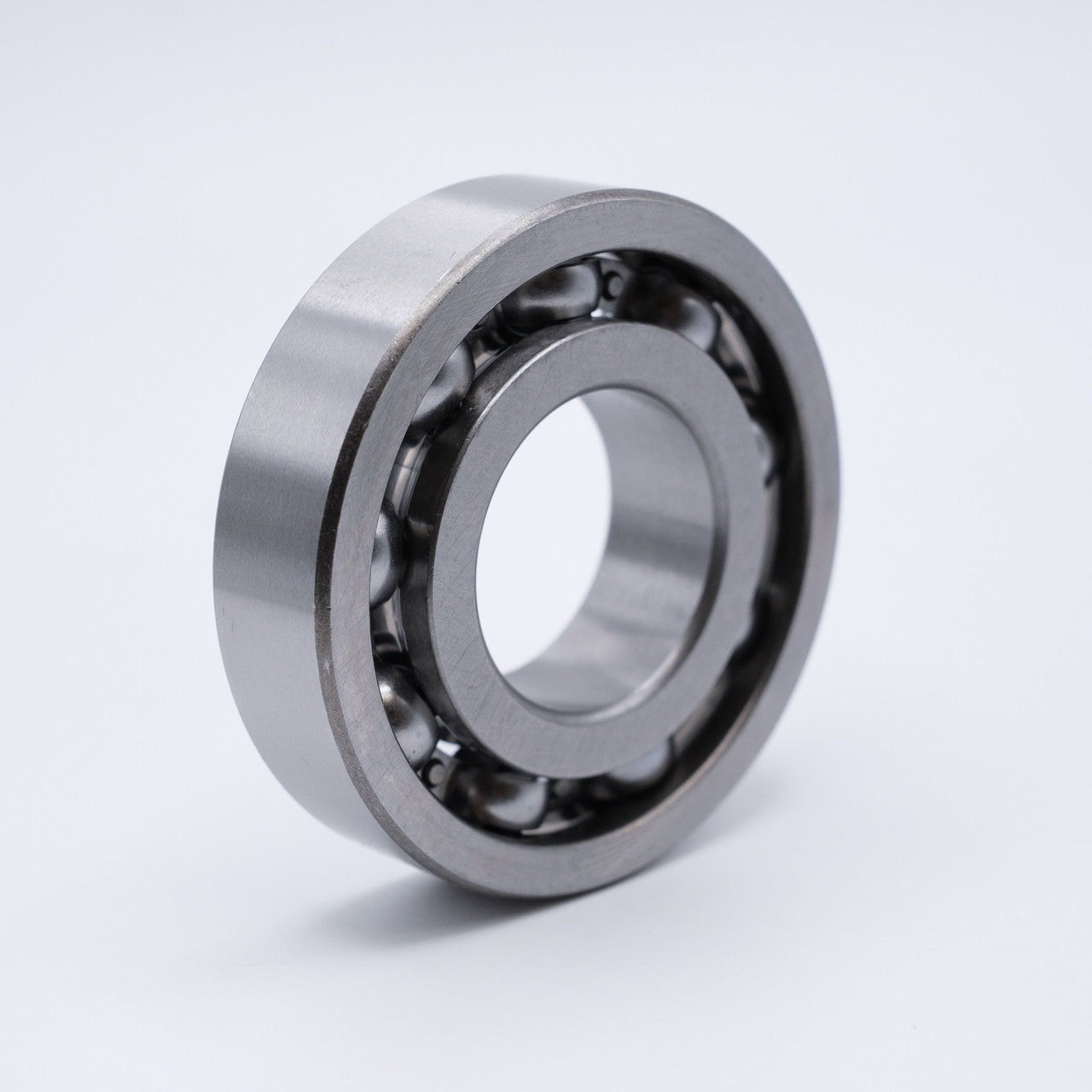

RMS9-2RS RMS Series Ball Bearing
