RMS13-ZZ
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableCouldn't load pickup availability

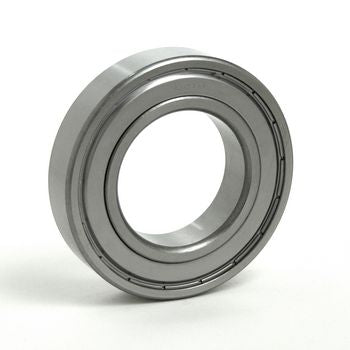

Image is for illustration purposes only.
What RMS13-ZZ means
| Code | Position | Meaning |
|---|---|---|
RMS |
Type | Inch-dimension radial ball bearing, medium series |
13 |
Bore | Bore in eighths of an inch: 13/8 = 1-5/8 in |
ZZ |
Closure | Metal shields, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
RMS13-ZZ specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 41.27 mm | 1-5/8 in (1.625) | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 101.6 mm | 4 in (4) | Supplier catalogue listing |
| Width (B) | 23.81 mm | 15/16 in (0.9375) | Supplier catalogue listing |
| Bearing type | Inch-dimension radial ball bearing, medium series | Stated by the designation | |
| Seals / shields | Metal shields, both sides | Stated by the designation | |
RMS13-ZZ is an inch-dimension radial ball bearing, medium series, 1-5/8 in bore × 4 in OD × 15/16 in wide (41.27 × 101.6 × 23.81 mm). It has metal shields on both sides.
The RMS13 ZZ is a deep groove ball bearing from the RMS series, featuring double metal shields (ZZ) on both sides for protection against contaminants while allowing pre-lubrication. Deep groove ball bearings are versatile radial ball bearings designed to accommodate radial loads and moderate axial loads in both directions.
Series: RMS
Model Number: RMS13 ZZ
Bore/Inner Diameter Inch: 1.625
Bore/Inner Diameter mm: 41.275
Outside Diameter Inch: 4
Outside Diameter mm: 101.6
