RMS13-NR
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$69.23 USD
Regular price
Sale price
$69.23 USD
Unit price
per
Couldn't load pickup availability
Bore1-5/8 in
41.27 mm
Outside dia.4 in
101.6 mm
Width15/16 in
23.81 mm
TypeInch-dimension radial ball bearing, medium series
SealingOpen
Flat-rate shipping — calculated by weight at checkout

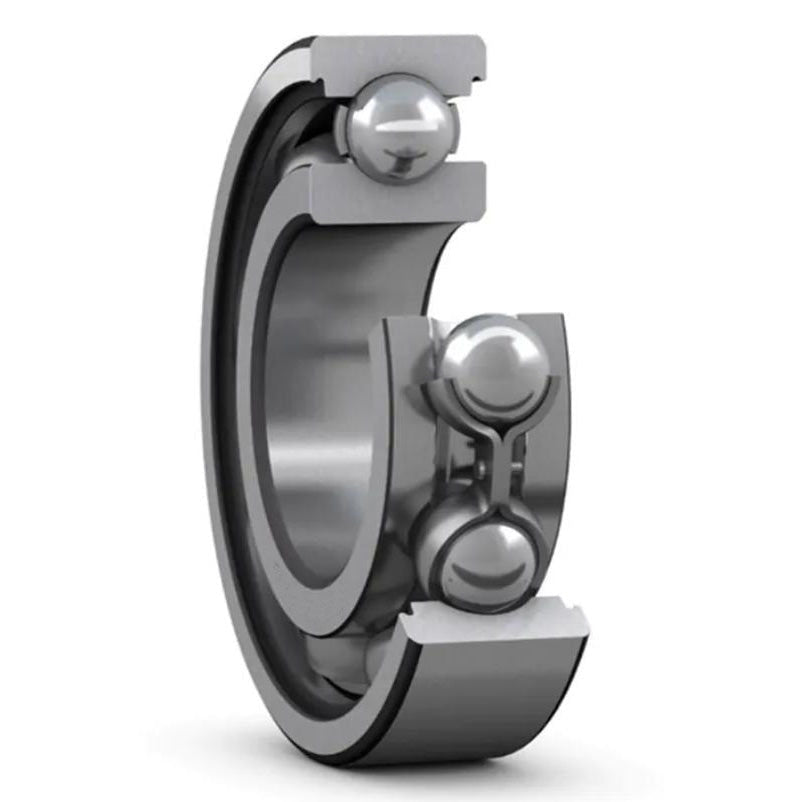

Image is for illustration purposes only.
What RMS13-NR means
| Code | Position | Meaning |
|---|---|---|
RMS |
Type | Inch-dimension radial ball bearing, medium series |
13 |
Bore | Bore in eighths of an inch: 13/8 = 1-5/8 in |
NR |
Snap ring | Snap-ring groove in the outer ring, with the snap ring fitted |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
RMS13-NR specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 41.27 mm | 1-5/8 in (1.625) | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 101.6 mm | 4 in (4) | Two independent catalogue sources agree |
| Width (B) | 23.81 mm | 15/16 in (0.9375) | Two independent catalogue sources agree |
| Bearing type | Inch-dimension radial ball bearing, medium series | Stated by the designation | |
| Seals / shields | Open | Supplier catalogue listing | |
| Snap ring | Snap-ring groove in the outer ring, with the snap ring fitted | Stated by the designation | |
RMS13-NR is an inch-dimension radial ball bearing, medium series, 1-5/8 in bore × 4 in OD × 15/16 in wide (41.27 × 101.6 × 23.81 mm). It has a snap-ring groove in the outer ring, with the snap ring fitted.
The RMS13 NR is a single row deep groove ball bearing from the RMS series, featuring a snap ring groove in the outer ring for axial location. Deep groove ball bearings are versatile components suitable for radial loads, moderate axial loads, and combined load applications.
