RMS11-NR
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$65.00 USD
Regular price
Sale price
$65.00 USD
Unit price
per
Couldn't load pickup availability
Bore1-3/8 in
34.92 mm
Outside dia.3-1/2 in
88.9 mm
Width7/8 in
22.23 mm
TypeInch-dimension radial ball bearing, medium series
SealingOpen
Flat-rate shipping — calculated by weight at checkout

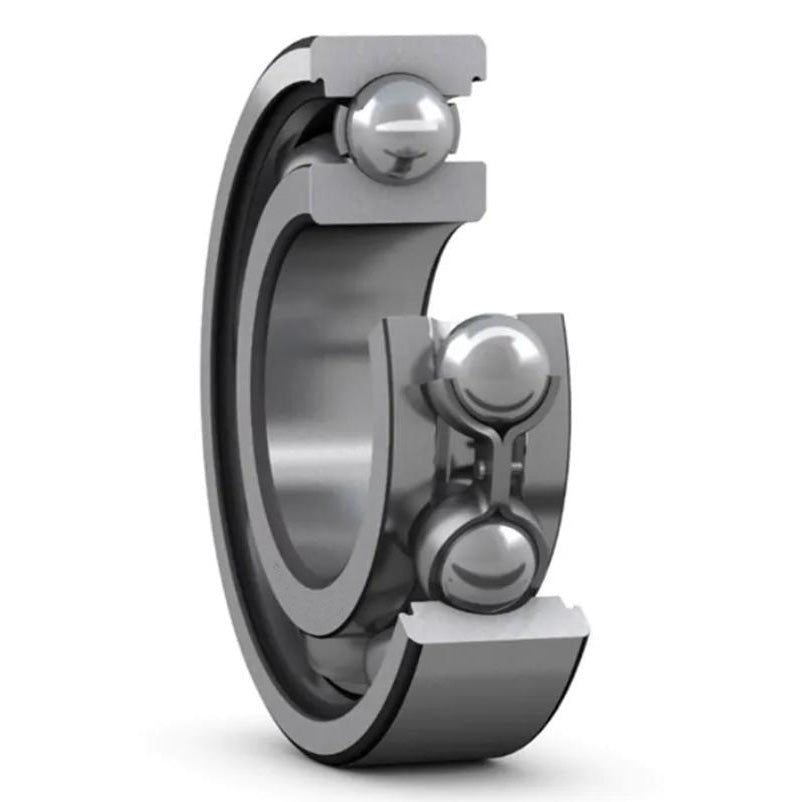

Image is for illustration purposes only.
What RMS11-NR means
| Code | Position | Meaning |
|---|---|---|
RMS |
Type | Inch-dimension radial ball bearing, medium series |
11 |
Bore | Bore in eighths of an inch: 11/8 = 1-3/8 in |
NR |
Snap ring | Snap-ring groove in the outer ring, with the snap ring fitted |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
RMS11-NR specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 34.92 mm | 1-3/8 in (1.375) | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 88.9 mm | 3-1/2 in (3.5) | Two independent catalogue sources agree |
| Width (B) | 22.23 mm | 7/8 in (0.875) | Two independent catalogue sources agree |
| Bearing type | Inch-dimension radial ball bearing, medium series | Stated by the designation | |
| Seals / shields | Open | Supplier catalogue listing | |
| Snap ring | Snap-ring groove in the outer ring, with the snap ring fitted | Stated by the designation | |
RMS11-NR is an inch-dimension radial ball bearing, medium series, 1-3/8 in bore × 3-1/2 in OD × 7/8 in wide (34.92 × 88.9 × 22.23 mm). It has a snap-ring groove in the outer ring, with the snap ring fitted.
The RMS11 NR is a single row deep groove ball bearing from the RMS series, featuring a snap ring groove in the outer ring for axial retention in housing bores. Deep groove ball bearings are versatile radial bearings capable of supporting moderate thrust loads in both directions.
RMS11 NR RMS Series Ball Bearing
