R6-2RS
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableCouldn't load pickup availability

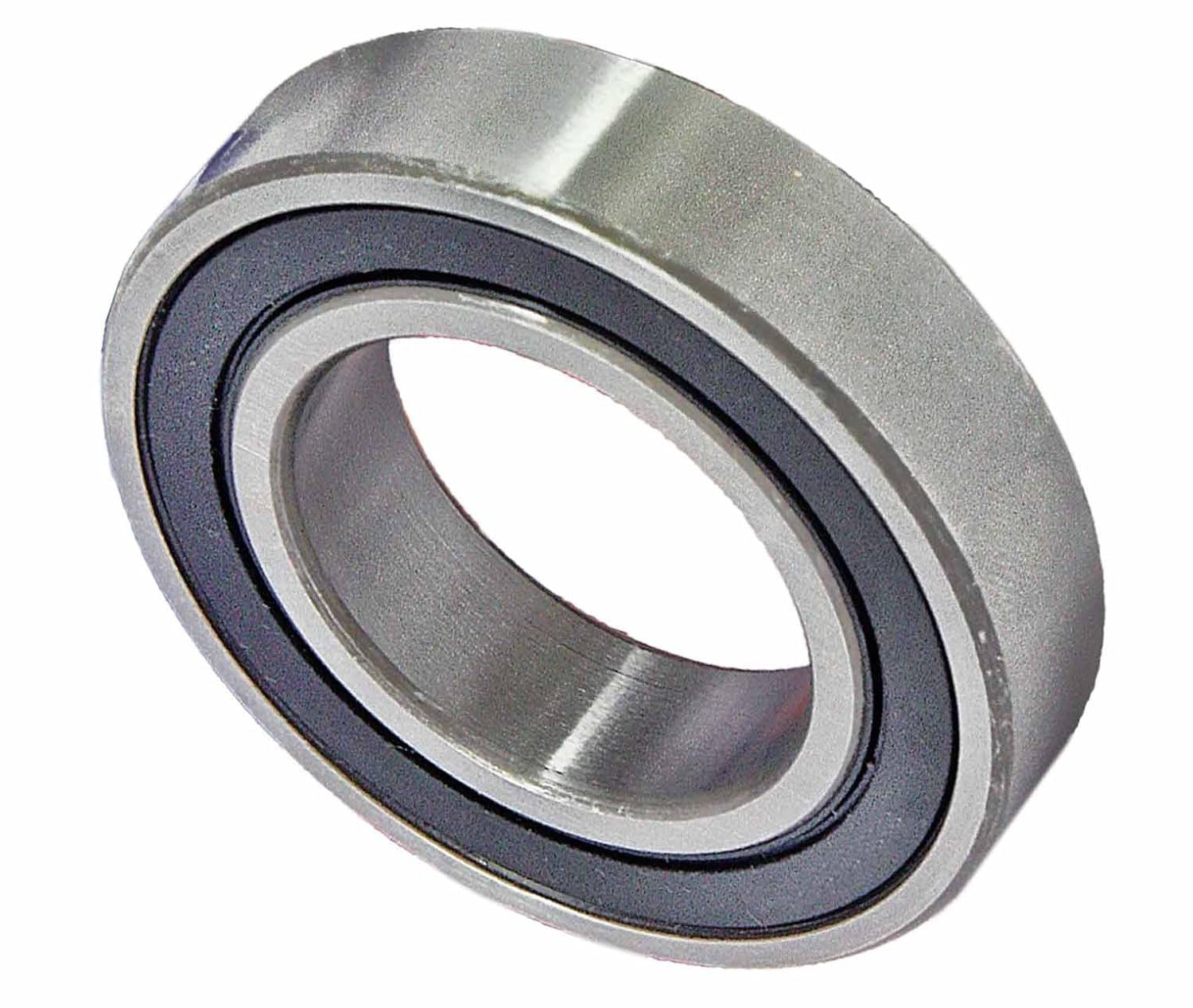

Image is for illustration purposes only.
What R6-2RS means
| Code | Position | Meaning |
|---|---|---|
R |
Type | Inch-dimension radial ball bearing, R series (ABMA) |
6 |
Bore | Bore in sixteenths of an inch: 6/16 = 3/8 in |
2RS |
Closure | Contact rubber seals, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
R6-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 9.53 mm | 3/8 in (0.375) | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 22.23 mm | 7/8 in (0.875) | Supplier catalogue listing |
| Width (B) | 7.14 mm | 9/32 in (0.2812) | Supplier catalogue listing |
| Bearing type | Inch-dimension radial ball bearing, R series (ABMA) | Stated by the designation | |
| Seals / shields | Contact rubber seals, both sides | Stated by the designation | |
| Cage | Pressed steel | Supplier catalogue listing | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | R6-2RSJ | SKF Master Interchange |
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
R6-2RS is an inch-dimension radial ball bearing, R series (ABMA), 3/8 in bore × 7/8 in OD × 9/32 in wide (9.53 × 22.23 × 7.14 mm). It has rubber contact seals on both sides. Published interchange tables list it as equivalent to SKF R6-2RSJ.
The R6-2RS is a single row deep groove ball bearing with double rubber seals on both sides. The 2RS seal configuration provides protection against contamination and retains lubrication for extended service life in general industrial applications.
Series: R
Model Number: R6 2RS
Bore/Inner Diameter Inch: 0.375
Bore/Inner Diameter mm: 9.525
Outside Diameter Inch: 0.875
Outside Diameter mm: 22.225
