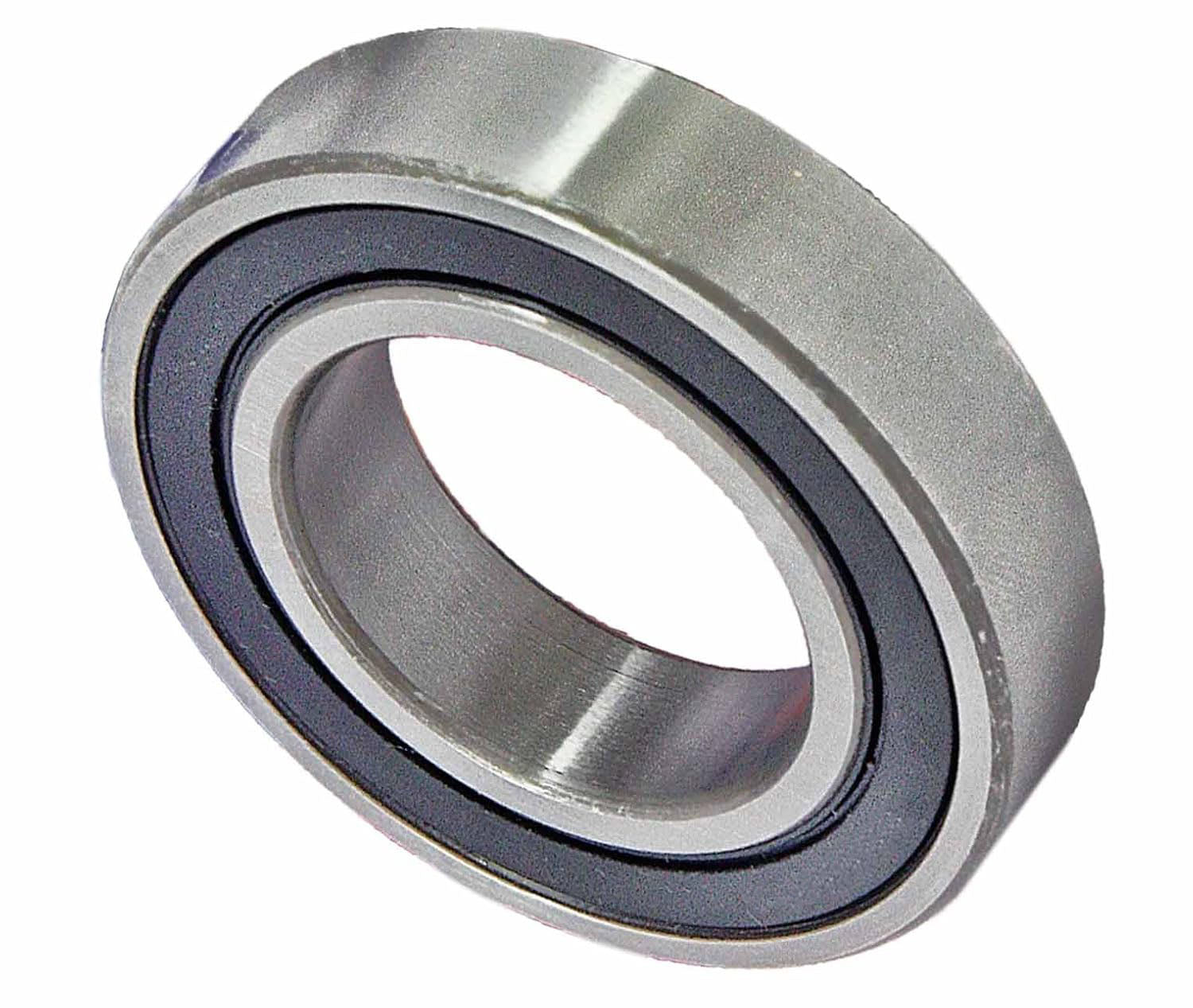

Image is for illustration purposes only.
R8-2RS
The R8-2RS is a single row deep groove ball bearing with double rubber seals (2RS) on both sides. The double seal design provides protection against contaminant ingress and retains lubrication, making this bearing suitable for environments with dust or moisture.
Deep groove ball bearings are versatile components used in electric motors, pumps, conveyor systems, agricultural equipment, and general industrial machinery where radial and light thrust loads must be supported at moderate speeds.
R8 2RS
Series: R
Model Number: R8 2RS
Bore/Inner Diameter Inch: 0.5
Bore/Inner Diameter mm: 12.7
Outside Diameter Inch: 1.125
Outside Diameter mm: 28.575
For large orders ($2000+) please inquire by email.
Measurement Type
Imperial
Inner Diameter (ID)
1 mm / 1/2 in
Outside Diameter (OD)
1 1/8 in
Width
5/16 in
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Other Features
Single Row | Deep Groove Ball Bearing | Rubber Seals
Component
Assembly
Weight (kg)
0.018
Basic Number
R8
UNSPSC
31171504
