NK25X45X17.5NRPX1
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeRegular price
$20.55 USD
Regular price
Sale price
$20.55 USD
Unit price
per
Couldn't load pickup availability
Bore25 mm
0.9843 in
Outside dia.45 mm
1.7717 in
Width17.5 mm
0.689 in
TypeNeedle roller bearing without inner ring
SealingOpen
Flat-rate shipping — calculated by weight at checkout

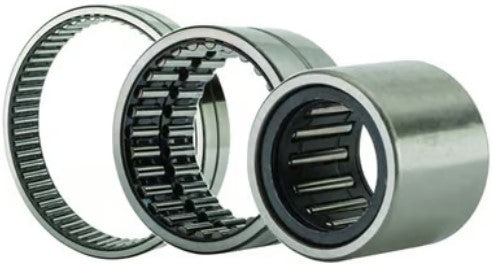

Image is for illustration purposes only.
NK25X45X17.5NRPX1 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 25 mm | 0.9843 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 45 mm | 1.7717 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 17.5 mm | 0.689 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Needle roller bearing without inner ring | Stated by the designation | |
| Seals / shields | Open | Supplier catalogue listing | |
NK25X45X17.5NRPX1 is a needle roller bearing without inner ring, 25 mm bore × 45 mm OD × 17.5 mm wide (0.9843 × 1.7717 × 0.689 in).
The NK25X45X17.5NRPX1 is a needle roller bearing with machined ring and race assembly. This bearing features a complement of needle rollers retained in a cage, designed to operate with a machined raceway for high radial load capacity in compact radial space.
Measurement Type
Metric
Inner Diameter (ID)
25 mm
Outside Diameter (OD)
45 mm
Width
17.5 mm
Sealing
Open
Precision Class
ABEC 1 | ISO P0
Series
NK
Bearing Type
Machined Ring Needle Roller Bearing
Other Features
Needle Roller Bearing | Radial Load Design
Component
Assembly
Weight (kg)
0.131
Basic Number
NK25X45X17.5
UNSPSC
31171512
