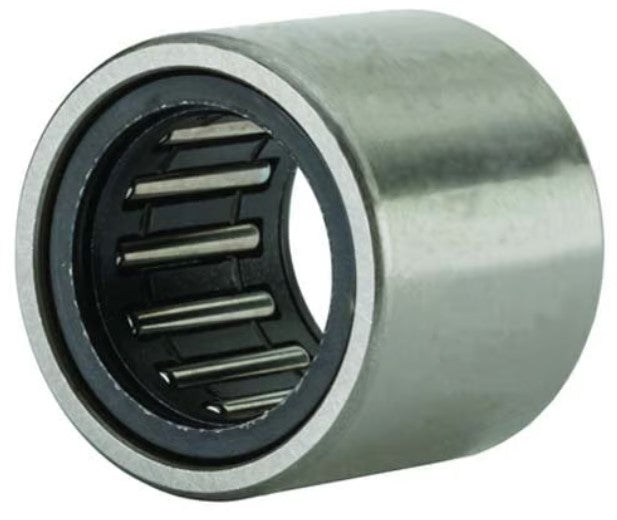

Image is for illustration purposes only.
NK19/16
The NK 19/16 is a needle roller bearing with machined rings, featuring a heavy-duty drawn cup design. This bearing type uses cylindrical rollers with a length-to-diameter ratio that provides high radial load capacity in a compact radial space.
Needle roller bearings with machined rings are commonly used in automotive transmissions, engine components, agricultural equipment, and industrial machinery where space is limited and high radial loads must be supported. The machined rings provide precise dimensional accuracy and improved load distribution.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
19 mm
Outside Diameter (OD)
27 mm
Width
16 mm
Sealing
Open
Precision Class
ABEC 1 | ISO P0
Bearing Type
Needle Roller Bearing
Other Features
Needle Roller Bearing | Radial Load Design
Component
Roller Assembly with Outer Ring-No Inner Ring
Weight (kg)
0.026
Basic Number
NK19/16
UNSPSC
31171512
