LR209-2RS
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$68.18 USD
Regular price
Sale price
$68.18 USD
Unit price
per
Couldn't load pickup availability
Bore45 mm
1.7717 in
Outside dia.90 mm
3.5433 in
Width19 mm
0.748 in
TypeYoke-type track roller, double row
SealingDouble Sealed
Flat-rate shipping — calculated by weight at checkout

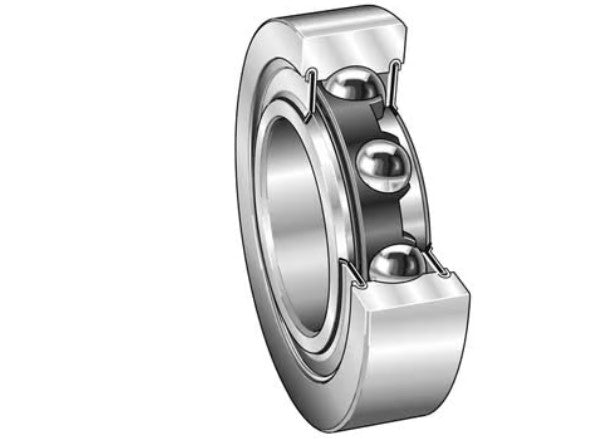

Image is for illustration purposes only.
LR209-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 45 mm | 1.7717 in | Two independent catalogue sources agree |
| Outside diameter (D) | 90 mm | 3.5433 in | Two independent catalogue sources agree |
| Width (B) | 19 mm | 0.748 in | Two independent catalogue sources agree |
| Bearing type | Yoke-type track roller, double row | Stated by the designation | |
| Seals / shields | Double Sealed | Supplier catalogue listing | |
LR209-2RS is a yoke-type track roller, double row, 45 mm bore × 90 mm OD × 19 mm wide (1.7717 × 3.5433 × 0.748 in).
The LR209-2RS is a track roller bearing with double rubber seals (2RS) designed to run on track surfaces or guide rails. The integrated seals protect against contamination from dust and moisture while retaining lubrication for extended service life.
LR209-2RS LR209NPPU Track Rollers Series Bearing
Measurement Type
Metric
Inner Diameter (ID)
45 mm
Outside Diameter (OD)
90 mm
Width
19 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Other Features
Track Roller Bearing | Thick Outer Ring | Radial Load Design
Component
Assembly
Weight (kg)
0.45
Basic Number
LR209
UNSPSC
31171530
