LR208-2RS
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$63.64 USD
Regular price
Sale price
$63.64 USD
Unit price
per
Couldn't load pickup availability
Bore40 mm
1.5748 in
Outside dia.85 mm
3.3465 in
Width18 mm
0.7087 in
TypeYoke-type track roller, double row
SealingDouble Sealed
Flat-rate shipping — calculated by weight at checkout

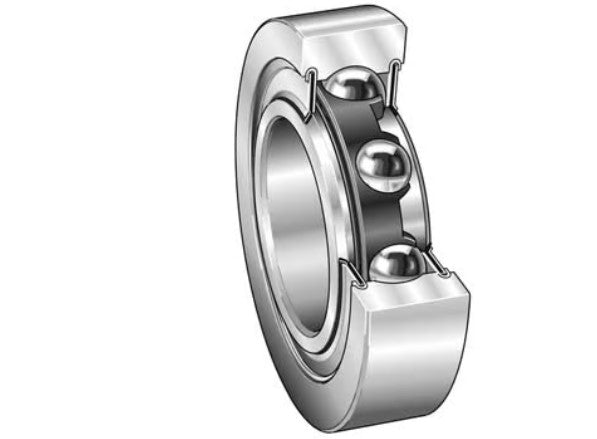

Image is for illustration purposes only.
LR208-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 40 mm | 1.5748 in | Two independent catalogue sources agree |
| Outside diameter (D) | 85 mm | 3.3465 in | Two independent catalogue sources agree |
| Width (B) | 18 mm | 0.7087 in | Two independent catalogue sources agree |
| Bearing type | Yoke-type track roller, double row | Stated by the designation | |
| Seals / shields | Double Sealed | Supplier catalogue listing | |
LR208-2RS is a yoke-type track roller, double row, 40 mm bore × 85 mm OD × 18 mm wide (1.5748 × 3.3465 × 0.7087 in).
The LR208-2RS is a track roller bearing with double rubber seals (2RS) that provide protection against contamination while retaining lubrication. Track roller bearings feature a thick-walled outer ring designed to run directly on track surfaces or guide rails.
LR208-2RS Track Rollers Series Bearing
Measurement Type
Metric
Inner Diameter (ID)
40 mm
Outside Diameter (OD)
85 mm
Width
18 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Other Features
Track Roller Bearing | Thick Outer Ring | Radial Load Design
Component
Assembly
Weight (kg)
0.45
Basic Number
LR208
UNSPSC
31171530
