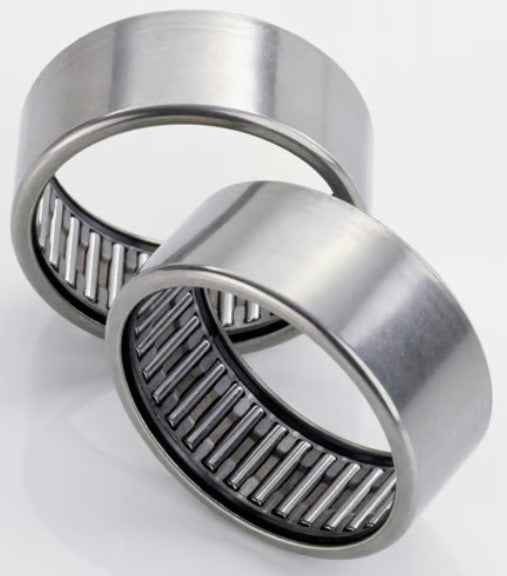

Image is for illustration purposes only.
HK2820;PDL225
The HK2820;PDL225 is a drawn cup needle roller bearing featuring a thin-walled outer ring with a drawn cup construction and full complement needle rollers. This design provides high radial load capacity in minimal radial space, making it suitable for applications with limited envelope dimensions.
Drawn cup needle roller bearings are commonly used in connecting rods, rocker arm pivots, universal joints, and other automotive, agricultural, and industrial applications where high load capacity and compact design are required. The bearing can accommodate oscillating or slow rotational motion.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
28 mm
Outside Diameter (OD)
35 mm
Width
20 mm
Sealing
Open
Precision Class
ABEC 1 | ISO P0
Bearing Type
Drawn Cup Needle Roller Bearing
Other Features
Drawn Cup Needle Roller Bearing | Radial Load Design
Component
Roller Assembly with Outer Ring-No Inner Ring
Weight (kg)
0.04
Basic Number
2820
UNSPSC
31171512
