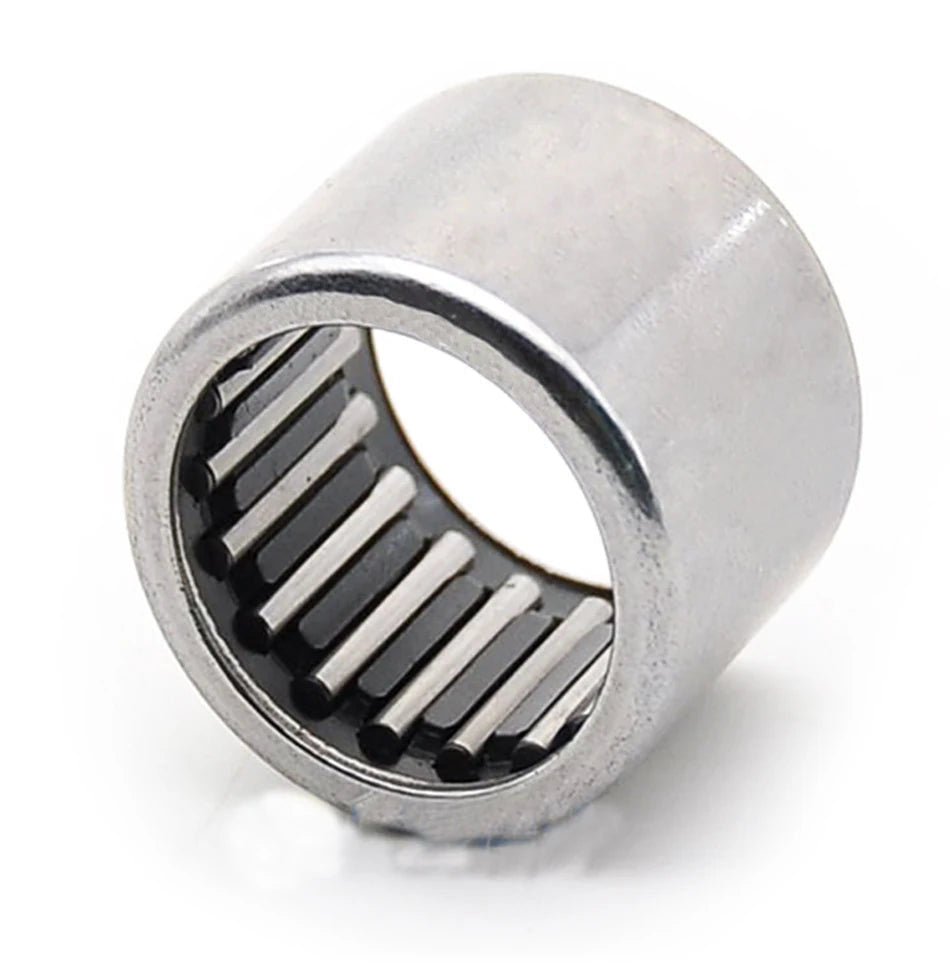

HK3012B
The HK3012B is an open type drawn cup needle roller bearing with a cage to maintain roller spacing and alignment. This bearing features a thin-walled outer ring (drawn cup) with high radial load capacity in a compact radial space, measuring 30 mm inner diameter, 37 mm outer diameter, and 12 mm width.
Drawn cup needle roller bearings are commonly used in applications with limited radial space such as automotive transmissions, power tools, small electric motors, and office equipment. The open design allows for easy inspection and is suitable for environments where external sealing is provided.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
30 mm
Outside Diameter (OD)
37 mm
Width
12 mm
Sealing
Open
Precision Class
ABEC 1 | ISO P0
Cage
Caged
Bearing Type
Outer Ring & Roller Assembly
Other Features
Drawn Cup Needle Roller Bearing | Radial Load Design
Component
Roller Assembly with Outer Ring-No Inner Ring
Weight (kg)
0.024
Basic Number
HK3012
UNSPSC
31171512
