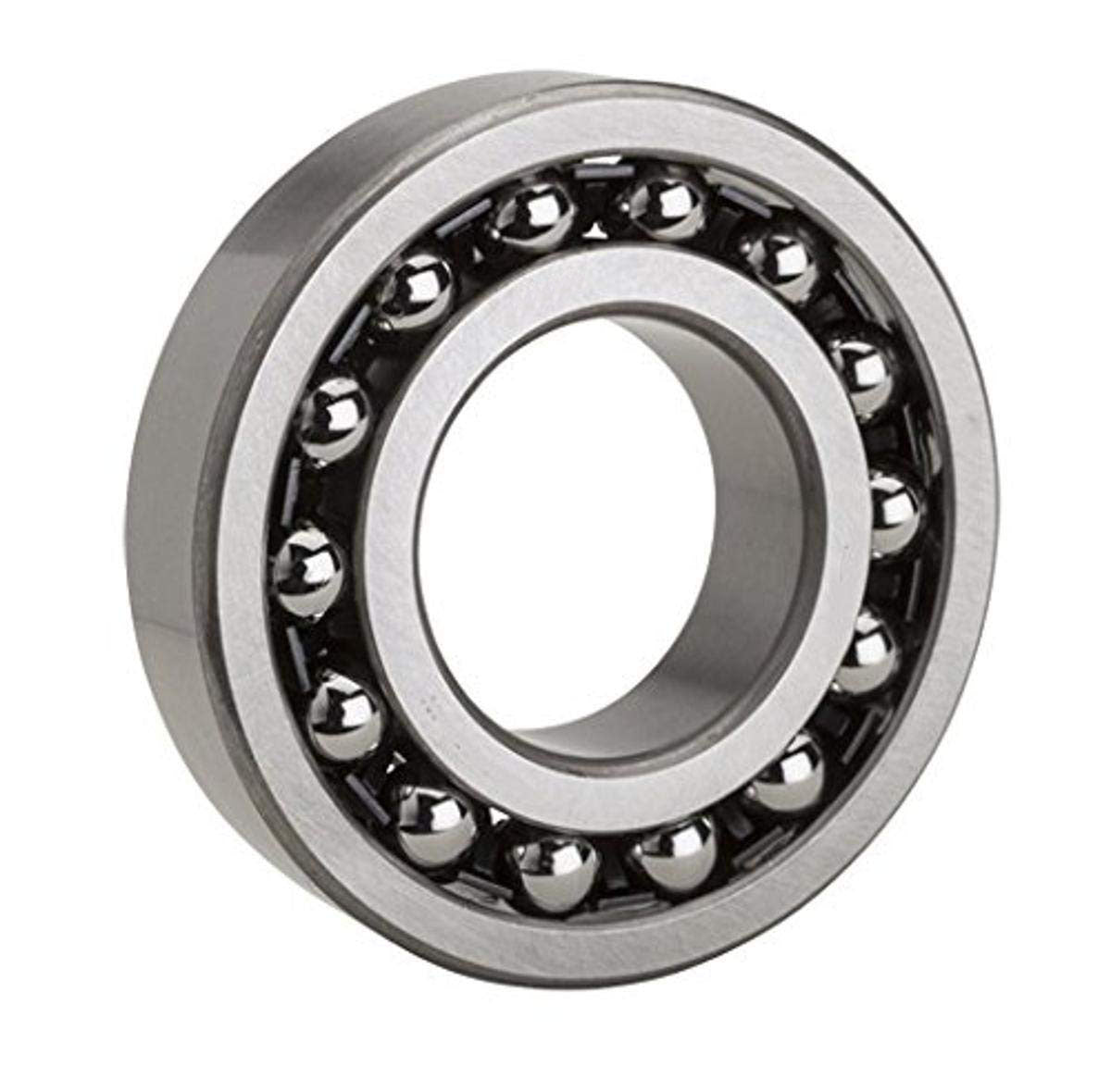

Image is for illustration purposes only.
BL306NR
The BL306NR is a single row radial ball bearing with an open design and snap ring groove. Open bearings allow for user-selected lubrication and easy maintenance while the snap ring provides secure axial location in the housing.
Single row radial ball bearings are used in electric motors, gearboxes, pumps, conveyors, and general industrial rotating equipment where primarily radial loads are present. The snap ring feature simplifies assembly and provides positive positioning without additional components.
Interchange / cross reference
TIMKEN 1306L
Cross-references are provided as a guide — verify dimensions and fit for your application.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
30 mm
Outside Diameter (OD)
72 mm
Width
19 mm
Sealing
Open
Precision Class
ABEC 1 | ISO P0
Bearing Type
Max Type Ball Bearing
Other Features
Single Row | Deep Groove Ball Bearing
Component
Assembly
Weight (kg)
0.378
Basic Number
306
UNSPSC
31171504
