AXK1226A

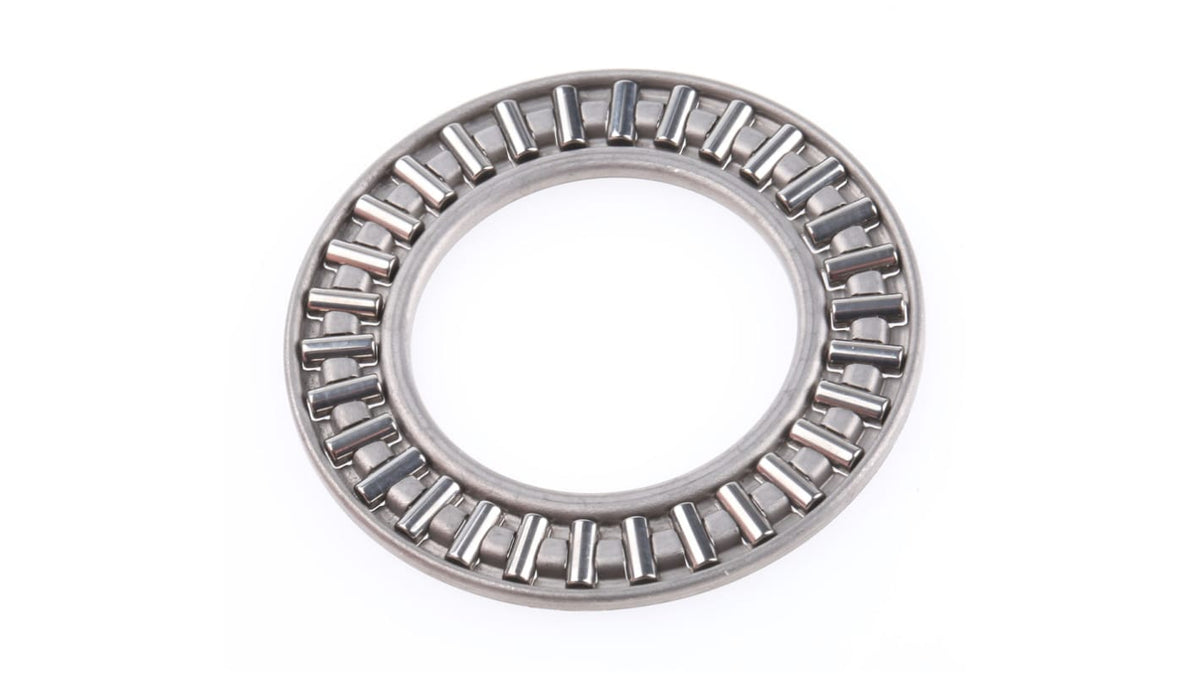

AXK1226A NEEDLE ROLLER THRUST BEARING

Thrust Needle Roller Assembly; 12MM Bore 1; 12MM Bore 2; 26MM Outside Diameter; 2MM Height; Needle Roller Bearing; Single Direction; Not Self Aligning; Banded; Steel Cage; ABEC 1 | ISO P0; Roller Assembly Only

Weight/Kilogram: 3

UNSPSC: 31171500

EAN: 605790197857

Rolling Element: Needle Roller Bearing

Self Aligning: No

Component Description: Roller Assembly Only

Thrust Bearing: Yes

Single or Double Direction: Single Direction

Cage Material: Steel

Precision Class: ABEC 1 | ISO P0

Other Features: High Carbon Chrome Steel Rolling Element Material | 32.3 N Static Load Rating | 10.8 N Dynamic Load Rating | Bore 2 dimension may vary between manufacturers

Inch Metric: Metric

Category BDI: Thrust Roller Bearings

Harmonized Tariff Code: 8482.99.25.40

Noun: Roller Assembly

Keyword String: Thrust Needle

Weight/LBS: 0.00661

Long Description: Thrust Needle Roller Assembly; 12MM Bore 1; 12MM Bore 2; 26MM Outside Diameter; 2MM Height; Needle Roller Bearing; Single Direction; Not Self Aligning; Banded; Steel Cage; ABEC 1 | ISO P0; Roller Assembly Only

Bore 2: 0.472 Inch | 12 Millimeter

Outside Diameter: 1.024 Inch | 26 Millimeter

Height: 0.079 Inch | 2 Millimeter

Bore 1: 0.472 Inch | 12 Millimeter
