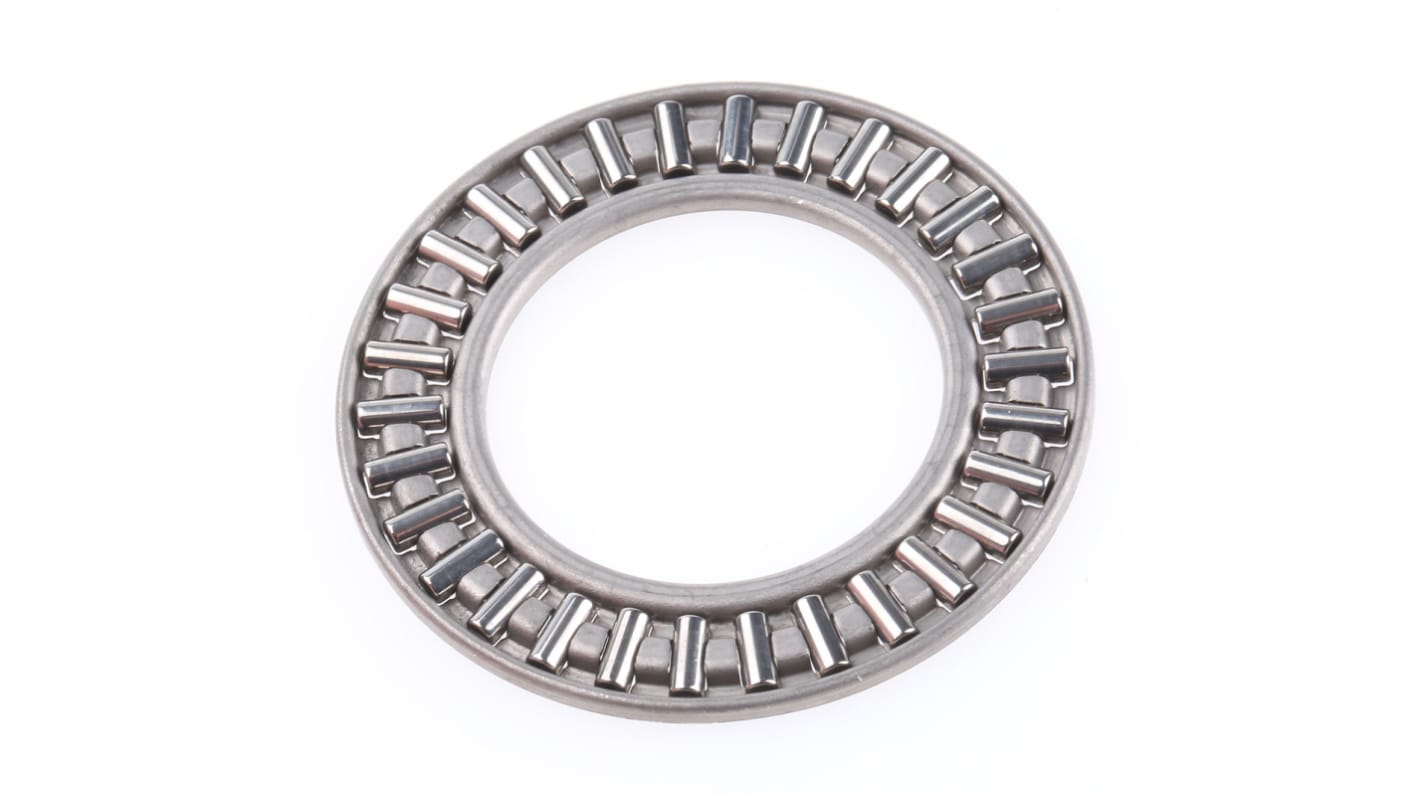

AXK1024C NEEDLE ROLLER THRUST BEARING ; 10MM ID X 24MM OD X 2MM WD

Thrust Needle Roller Assembly; 10MM Bore 1; 10MM Bore 2; 24MM Outside Diameter; 2MM Height; Needle Roller Bearing; Single Direction; Not Self Aligning; Banded; Steel Cage; ABEC 1 | ISO P0; Roller Assembly Only

Weight/Kilogram: 0.003

UNSPSC: 31171500

EAN: 605790346682

Rolling Element: Needle Roller Bearing

Self Aligning: No

Component Description: Roller Assembly Only

Thrust Bearing: Yes

Single or Double Direction: Single Direction

Cage Material: Steel

Precision Class: ABEC 1 | ISO P0

Other Features: High Carbon Chrome Steel Rolling Element Material | 25.9 N Static Load Rating | 9.32 N Dynamic Load Rating | Bore 2 dimension may vary between manufacturers

Inch Metric: Metric

Category BDI: Thrust Roller Bearings

Harmonized Tariff Code: 8482.99.25.40

Noun: Roller Assembly

Keyword String: Thrust Needle

Weight/LBS: 0.00573

Long Description: Thrust Needle Roller Assembly; 10MM Bore 1; 10MM Bore 2; 24MM Outside Diameter; 2MM Height; Needle Roller Bearing; Single Direction; Not Self Aligning; Banded; Steel Cage; ABEC 1 | ISO P0; Roller Assembly Only

Height: 0.079 Inch | 2 Millimeter

Bore 1: 0.394 Inch | 10 Millimeter

Outside Diameter: 0.945 Inch | 24 Millimeter

Bore 2: 0.394 Inch | 10 Millimeter

For large orders ($2000+) please inquire by email.
