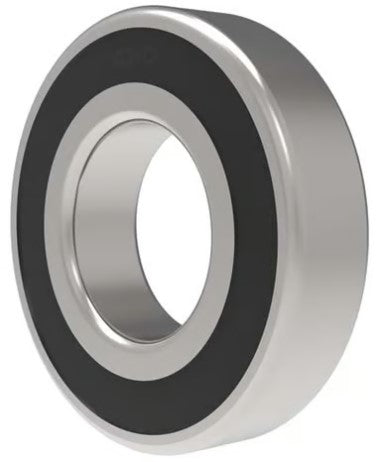

Image is for illustration purposes only.
6836-2RS
The 6836-2RS is a deep groove ball bearing from the 68 series, featuring a 180mm bore diameter and contact rubber seals on both sides. The 2RS seal configuration provides protection against contaminant ingress while retaining lubrication.
Deep groove ball bearings are versatile radial bearings suitable for applications requiring support of combined radial and axial loads at moderate to high speeds. Common applications include electric motors, gearboxes, pumps, and general industrial machinery.
6836-2RS 6800 (61800) Series Ball Bearing
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
180 mm
Outside Diameter (OD)
225 mm
Width
22 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Series
68
Bearing Type
Deep groove ball bearing
Other Features
Single Row | Deep Groove Ball Bearing | Rubber Seals
Component
Assembly
Weight (kg)
2
Basic Number
6836
UNSPSC
31171504
