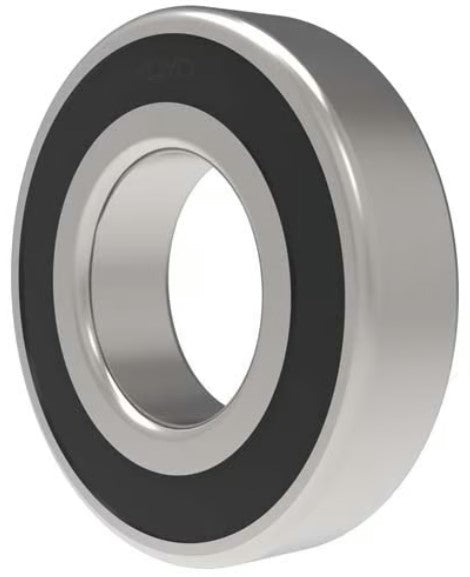

Image is for illustration purposes only.
6828-2RS
The 6828-2RS is a deep groove ball bearing from the 68 series, featuring a 140mm bore diameter and contact rubber seals on both sides. The 2RS designation indicates dual rubber seals that provide protection against contaminants while retaining lubrication.
Deep groove ball bearings are versatile components suitable for applications requiring radial and light axial load support at moderate to high speeds. Common applications include electric motors, gearboxes, pumps, and general industrial machinery where sealed, maintenance-free operation is desired.
6828-2RS 6800 (61800) Series Ball Bearing
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
140 mm
Outside Diameter (OD)
175 mm
Width
18 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Series
68
Bearing Type
Deep groove ball bearing
Other Features
Single Row | Deep Groove Ball Bearing | Rubber Seals
Component
Assembly
Weight (kg)
0.83
Basic Number
6828
UNSPSC
31171504
