6815ZZ
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability

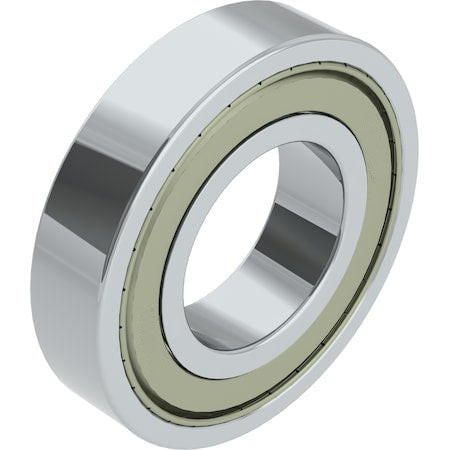

Image is for illustration purposes only.
What 6815ZZ means
| Code | Position | Meaning |
|---|---|---|
6 |
Type | Deep groove ball bearing |
8 |
Diameter series | Diameter series 8 (extra thin): fixes OD and width for the bore (ISO 15) |
15 |
Bore | Bore code 15 × 5 = 75 mm |
ZZ |
Closure | Metal shields, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
6815ZZ specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 75 mm | 2.9528 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 95 mm | 3.7402 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 10 mm | 0.3937 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Metal shields, both sides | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Cage | Steel | Supplier catalogue listing | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
| Material | Steel | Supplier catalogue listing | |
| Dynamic load rating, C | 13.88 kN | 3,120 lbf |
|---|---|---|
| Static load rating, C0 | 12.9 kN | 2,900 lbf |
| Limiting speed, grease | 6,400 rpm | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 6815 2Z | Brand suffix convention for this ISO size |
| TIMKEN | 6815 ZZ | Brand suffix convention for this ISO size |
| FAG | 6815 2ZR | Brand suffix convention for this ISO size |
| NSK | 6815 ZZ | Brand suffix convention for this ISO size |
| NTN | 6815 ZZ | Brand suffix convention for this ISO size |
| KOYO | 6815 ZZ | Brand suffix convention for this ISO size |
| NACHI | 6815 ZZE | Brand suffix convention for this ISO size |
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
6815ZZ is a deep groove ball bearing, 75 mm bore × 95 mm OD × 10 mm wide (2.9528 × 3.7402 × 0.3937 in). It has metal shields on both sides. Other makers sell the same size as SKF 6815 2Z, TIMKEN 6815 ZZ, FAG 6815 2ZR, NSK 6815 ZZ. NTN catalogue values for 6815ZZ: dynamic load rating C = 13.88 kN, static C0 = 12.9 kN, limiting speed 6,400 rpm on grease.
The 6815ZZ is a deep groove ball bearing with metal shields on both sides, featuring a 75mm bore diameter, 95mm outside diameter, and 10mm width. The double-shielded design provides protection against contaminants while retaining lubrication for extended service life.
