5306ZZ

Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agree
$46.08 USD
$46.08 USD
Sale Sold out
Bore30 mm 1.1811 in
Outside dia.72 mm 2.8346 in
Width30.16 mm 1.1875 in
TypeDouble row angular contact ball bearing
SealingMetal shields, both sides
ClearanceNormal
Flat-rate shipping — calculated by weight at checkout
  • 5306ZZ Ball Bearings
1 1

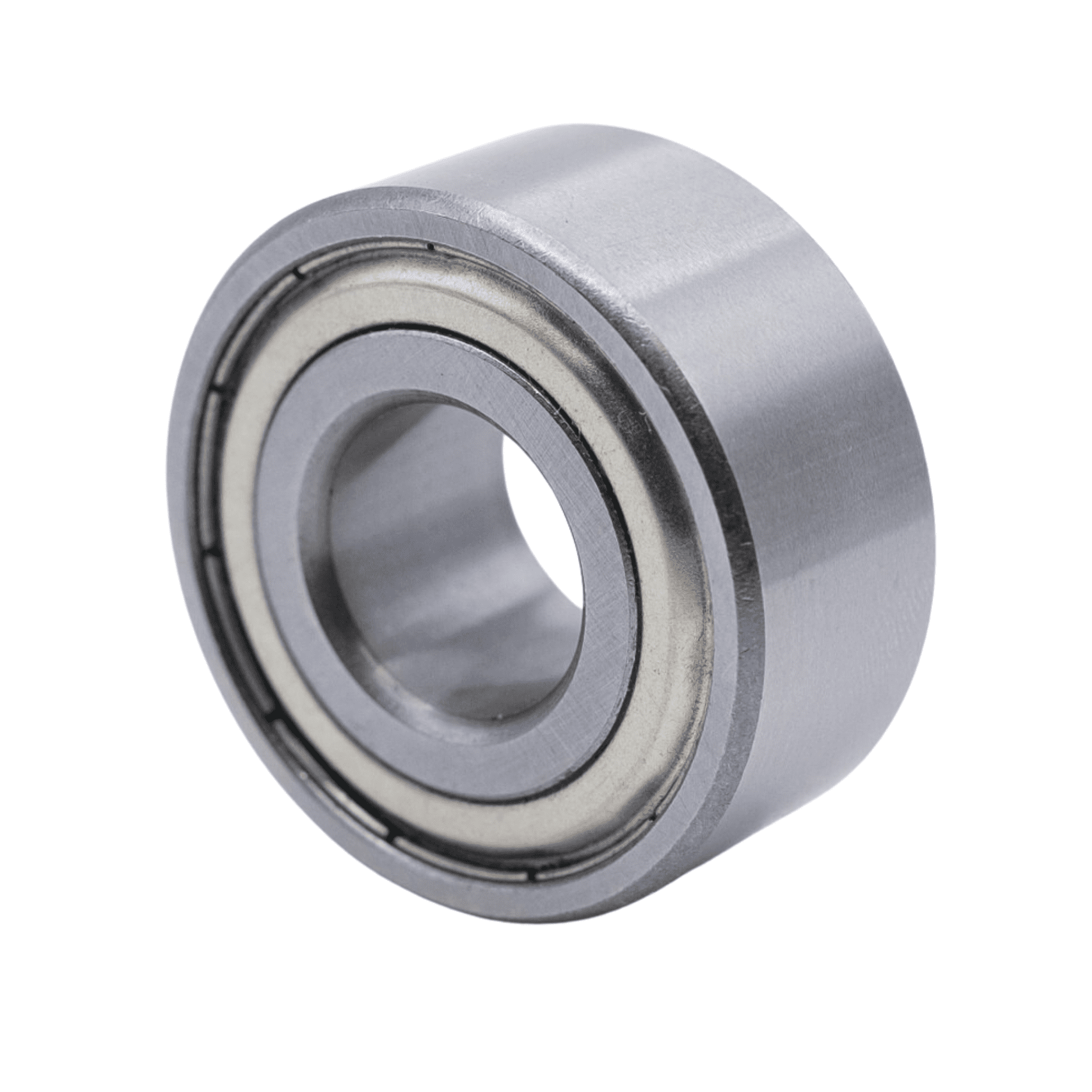

Image is for illustration purposes only.

What 5306ZZ means

CodePositionMeaning
53 Series Series 53: angular contact ball bearing, double row, diameter series 3 (medium)
06 Bore Bore code 06 × 5 = 30 mm
ZZ Closure Metal shields, both sides

Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.

5306ZZ specifications

Specification Metric Inch Basis
Bore (d) 30 mm 1.1811 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 72 mm 2.8346 in ISO table for this designation, confirmed by supplier data
Width (B) 30.16 mm 1.1875 in Maker's catalogue (PEER Bearing), confirmed by supplier data
Bearing type Double row angular contact ball bearing Stated by the designation
Seals / shields Metal shields, both sides Stated by the designation
Internal clearance Normal (CN): no clearance code in the designation Stated by the designation
Cage JIS S55C Steel Supplier catalogue listing
Tolerance class Normal (ISO P0 / ABEC 1): no tolerance-class code Stated by the designation
Material Jis suj2 steel Supplier catalogue listing

5306ZZ is a double row angular contact ball bearing, 30 mm bore × 72 mm OD × 30.16 mm wide (1.1811 × 2.8346 × 1.1875 in). It has metal shields on both sides.

The 5306-ZZ is a double row angular contact ball bearing with a 30 mm bore diameter and metal shields on both sides. The metal shield enclosure provides protection from contaminants while allowing for pre-lubrication in standard industrial environments.

5306 ZZ 5300 Series Double Row Ball Bearing

Related sizes & variants

  • 5306-2RS · 30×72×30.2 mm · Double Sealed
  • 5303-ZZ · 17×47×22.2 mm · Double Shielded
  • 5304-ZZ · 20×52×22 mm · Double Shielded
  • 5305-ZZ · 25×62×25.4 mm · Double Shielded
  • 5307-ZZ · 35×80×34.9 mm · Double Shielded
  • 5308-ZZ · 40×90×36.5 mm · Double Shielded
  • 5309-ZZ · 45×100×39.7 mm · Double Shielded
