5216
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability

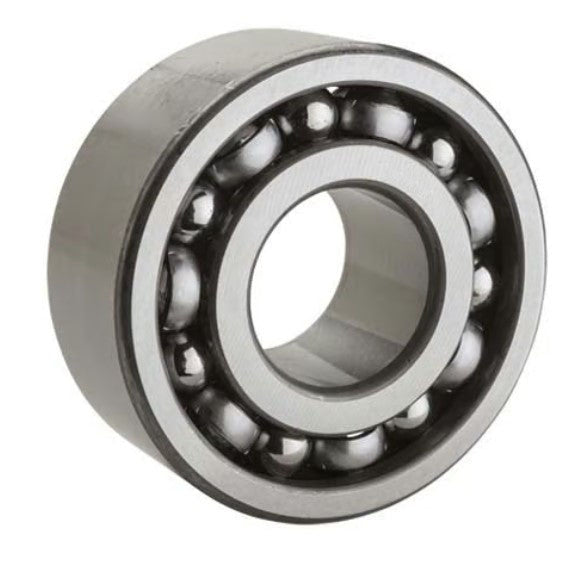

Image is for illustration purposes only.
What 5216 means
| Code | Position | Meaning |
|---|---|---|
52 |
Series | Series 52: angular contact ball bearing, double row, diameter series 2 (light) |
16 |
Bore | Bore code 16 × 5 = 80 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
5216 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 80 mm | 3.1496 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 140 mm | 5.5118 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 44.45 mm | 1.75 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Bearing type | Double row angular contact ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
Also listed in manufacturer interchange tables (1): confirm suffix codes before ordering
- TIMKEN 5216KE (Timken Interchange Guide)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
5216 is a double row angular contact ball bearing, 80 mm bore × 140 mm OD × 44.45 mm wide (3.1496 × 5.5118 × 1.75 in).
The 5216 is an angular contact ball bearing with an 80mm bore diameter in the 52 series. This open design bearing features double row construction for increased radial and axial load capacity in both directions.
