5215-2RS
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability

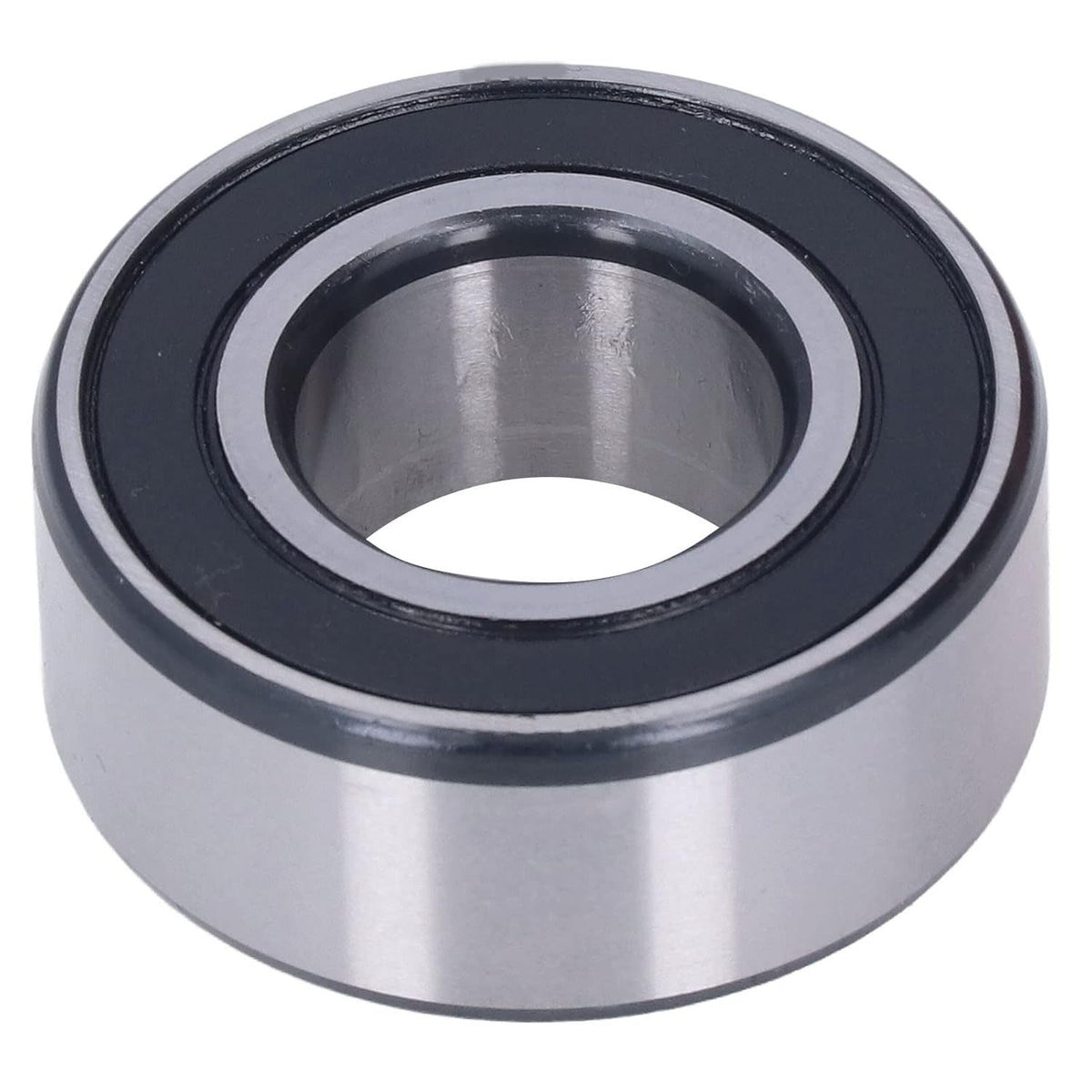

Image is for illustration purposes only.
What 5215-2RS means
| Code | Position | Meaning |
|---|---|---|
52 |
Series | Series 52: angular contact ball bearing, double row, diameter series 2 (light) |
15 |
Bore | Bore code 15 × 5 = 75 mm |
2RS |
Closure | Contact rubber seals, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
5215-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 75 mm | 2.9528 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 130 mm | 5.1181 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 41.27 mm | 1.625 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Bearing type | Double row angular contact ball bearing | Stated by the designation | |
| Seals / shields | Contact rubber seals, both sides | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
5215-2RS is a double row angular contact ball bearing, 75 mm bore × 130 mm OD × 41.27 mm wide (2.9528 × 5.1181 × 1.625 in). It has rubber contact seals on both sides.
The 5215-2RS is an angular contact ball bearing from the 52 series, featuring a 75mm bore diameter and contact rubber seals on both sides. Angular contact ball bearings are designed to accommodate combined radial and axial loads, with the contact angle enabling them to support thrust loads in one direction.
5215 2RS ANGULAR CONTACT BEARING ; 75MM BORE 130MM OD 41.3MM WD DR 2 SEALS
