5207ZZ

Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agree
$39.22 USD
$39.22 USD
Sale Sold out
Bore35 mm 1.378 in
Outside dia.72 mm 2.8346 in
Width26.99 mm 1.0625 in
TypeDouble row angular contact ball bearing
SealingMetal shields, both sides
ClearanceNormal
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout
  • 5207ZZ Ball Bearings
1 1

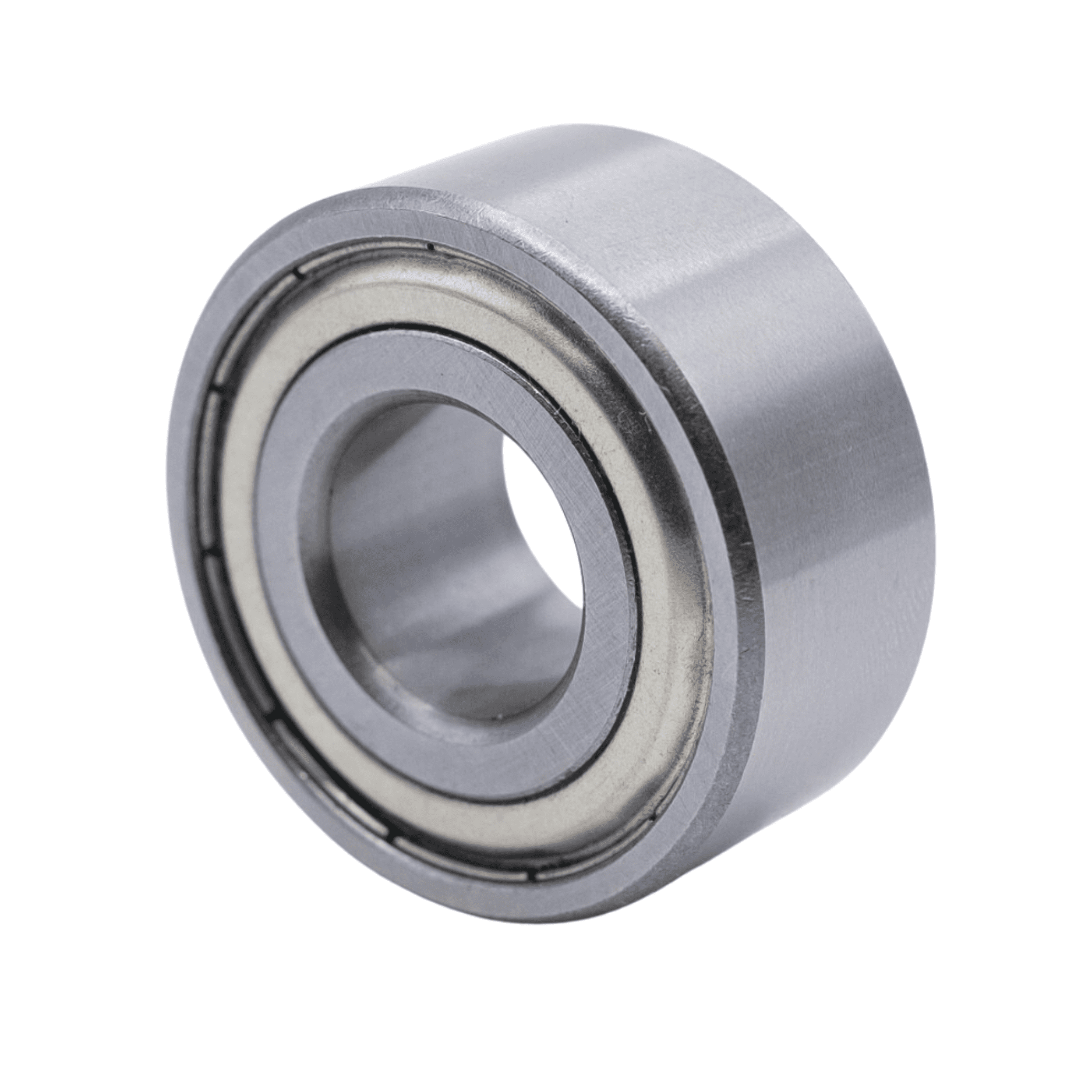

Image is for illustration purposes only.

What 5207ZZ means

CodePositionMeaning
52 Series Series 52: angular contact ball bearing, double row, diameter series 2 (light)
07 Bore Bore code 07 × 5 = 35 mm
ZZ Closure Metal shields, both sides

Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.

5207ZZ specifications

Specification Metric Inch Basis
Bore (d) 35 mm 1.378 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 72 mm 2.8346 in ISO table for this designation, confirmed by supplier data
Width (B) 26.99 mm 1.0625 in Maker's catalogue (PEER Bearing), confirmed by supplier data
Bearing type Double row angular contact ball bearing Stated by the designation
Seals / shields Metal shields, both sides Stated by the designation
Internal clearance Normal (CN): no clearance code in the designation Stated by the designation
Tolerance class Normal (ISO P0 / ABEC 1): no tolerance-class code Stated by the designation

5207ZZ is a double row angular contact ball bearing, 35 mm bore × 72 mm OD × 26.99 mm wide (1.378 × 2.8346 × 1.0625 in). It has metal shields on both sides.

Related sizes & variants

  • 5207-2RS · 35×72×27 mm · Double Sealed
  • 5206-2RS · 30×62×23.8 mm · Double Sealed
  • 5206-ZZ · 30×62×23.8 mm · Double Shielded
  • 5208-2RS · 40×80×30.2 mm · Double Sealed
  • 5208-ZZ · 40×80×30.2 mm · Double Shielded
  • 5209-2RS · 45×85×30.2 mm · Double Sealed

Browse all Double Row Angular Contact Ball Bearings →
