51409
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableRegular price
$108.00 USD
Regular price
Sale price
$108.00 USD
Unit price
per
Couldn't load pickup availability
Bore45 mm
1.7717 in
Outside dia.100 mm
3.937 in
Height39 mm
1.5354 in
TypeThrust ball bearing
SealingOpen
Ships separately from our European warehouse — shipping from $79, quoted at checkout
Ships from our European partner stock — allow 5–8 business days
Ships from our European partner stock — allow 5–8 business days

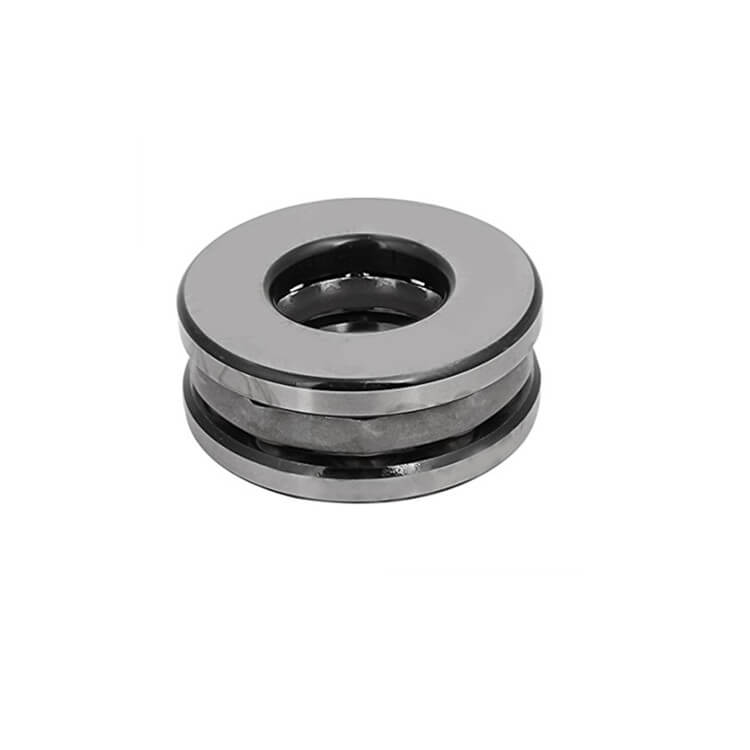

Image is for illustration purposes only.
What 51409 means
| Code | Position | Meaning |
|---|---|---|
5 |
Type | Thrust ball bearing |
1 |
Height series | Height series 1 |
4 |
Diameter series | Diameter series 4 (heavy) |
09 |
Bore | Bore code 09 × 5 = 45 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
51409 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 45 mm | 1.7717 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 100 mm | 3.937 in | Supplier catalogue listing |
| Height (H) | 39 mm | 1.5354 in | Supplier catalogue listing |
| Bearing type | Thrust ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
51409 is a thrust ball bearing, 45 mm bore × 100 mm OD × 39 mm wide (1.7717 × 3.937 × 1.5354 in).
The 51409 is a thrust ball bearing designed to support axial loads in one direction. With a 45mm bore diameter, 100mm outside diameter, and 39mm width, this bearing features a single-direction thrust design with ball rolling elements between hardened raceways.
Inner Diameter (ID)
45 mm
Outside Diameter (OD)
100 mm
Width
39 mm
Series
514
Bearing Type
Thrust ball bearing
