51406
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableRegular price
$41.95 USD
Regular price
Sale price
$41.95 USD
Unit price
per
Couldn't load pickup availability
Bore30 mm
1.1811 in
Outside dia.70 mm
2.7559 in
Height28 mm
1.1024 in
TypeThrust ball bearing
SealingOpen
Ships separately from our European warehouse — shipping from $79, quoted at checkout
Ships from our European partner stock — allow 5–8 business days
Ships from our European partner stock — allow 5–8 business days

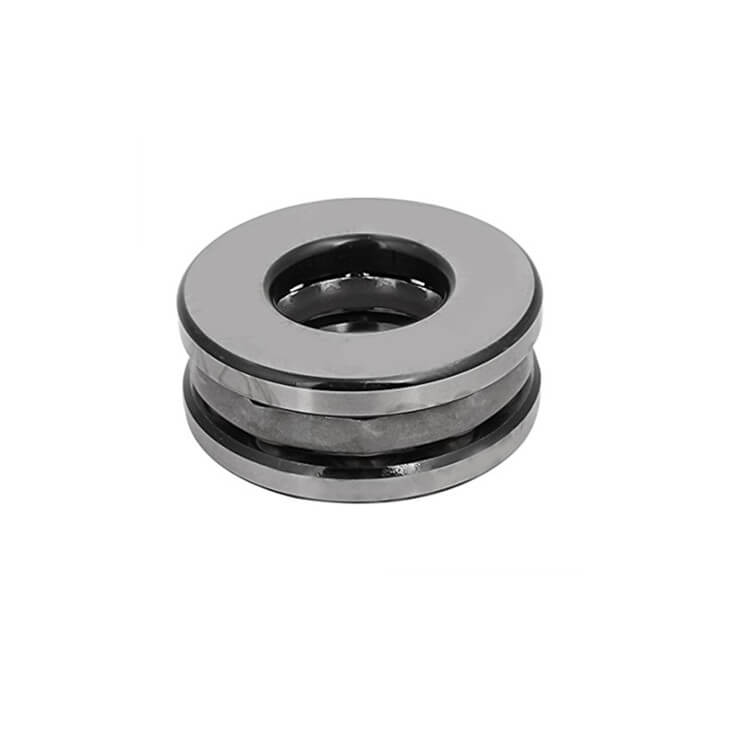

Image is for illustration purposes only.
What 51406 means
| Code | Position | Meaning |
|---|---|---|
5 |
Type | Thrust ball bearing |
1 |
Height series | Height series 1 |
4 |
Diameter series | Diameter series 4 (heavy) |
06 |
Bore | Bore code 06 × 5 = 30 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
51406 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 30 mm | 1.1811 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 70 mm | 2.7559 in | Supplier catalogue listing |
| Height (H) | 28 mm | 1.1024 in | Supplier catalogue listing |
| Bearing type | Thrust ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
51406 is a thrust ball bearing, 30 mm bore × 70 mm OD × 28 mm wide (1.1811 × 2.7559 × 1.1024 in).
The 51406 is a thrust ball bearing designed to support axial loads in a single direction. With a 30mm bore diameter, 70mm outside diameter, and 28mm width, this bearing is part of the 514 series.
Inner Diameter (ID)
30 mm
Outside Diameter (OD)
70 mm
Width
28 mm
Series
514
Bearing Type
Thrust ball bearing
