51313
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableRegular price
$123.29 USD
Regular price
Sale price
$123.29 USD
Unit price
per
Couldn't load pickup availability
Bore65 mm
2.5591 in
Outside dia.115 mm
4.5276 in
Height36 mm
1.4173 in
TypeThrust ball bearing
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

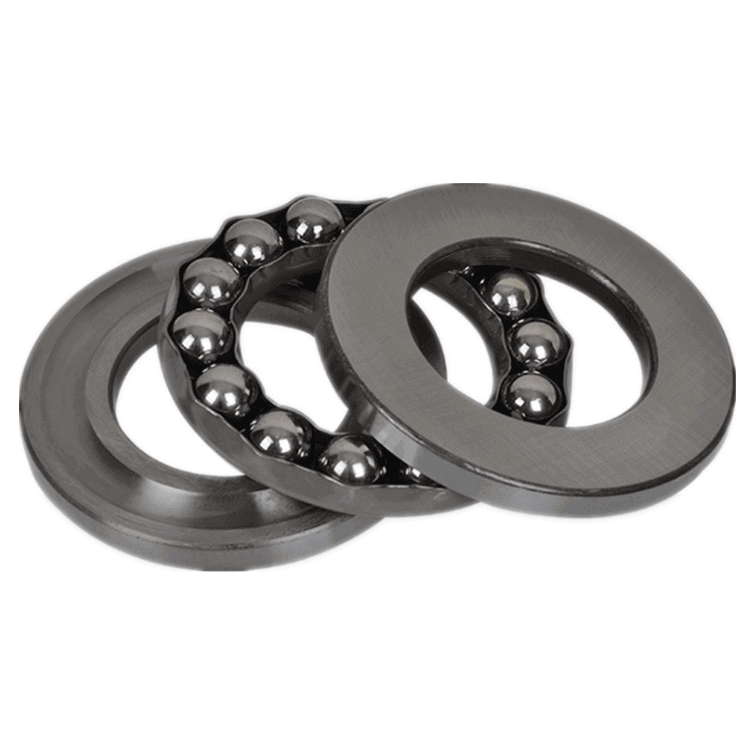

Image is for illustration purposes only.
What 51313 means
| Code | Position | Meaning |
|---|---|---|
5 |
Type | Thrust ball bearing |
1 |
Height series | Height series 1 |
3 |
Diameter series | Diameter series 3 (medium) |
13 |
Bore | Bore code 13 × 5 = 65 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
51313 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 65 mm | 2.5591 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 115 mm | 4.5276 in | Supplier catalogue listing |
| Height (H) | 36 mm | 1.4173 in | Supplier catalogue listing |
| Bearing type | Thrust ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
51313 is a thrust ball bearing, 65 mm bore × 115 mm OD × 36 mm wide (2.5591 × 4.5276 × 1.4173 in).
The 51313 is a thrust ball bearing from the 513 series with a 65 mm bore diameter. Thrust ball bearings are designed to accommodate axial loads in a single direction and provide precise axial guidance for rotating assemblies.
Measurement Type
Metric
Inner Diameter (ID)
65 mm
Outside Diameter (OD)
115 mm
Width
36 mm
Sealing
Open
Precision Class
ISO P0
Series
513
Bearing Type
Thrust ball bearing
Other Features
Single Direction | Thrust Ball Bearing | Metric Series
Component
Assembly
Weight (kg)
1.57
Basic Number
51313
UNSPSC
31171552
