51312
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableRegular price
$141.67 USD
Regular price
Sale price
$141.67 USD
Unit price
per
Couldn't load pickup availability
Bore60 mm
2.3622 in
Outside dia.110 mm
4.3307 in
Height35 mm
1.378 in
TypeThrust ball bearing
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

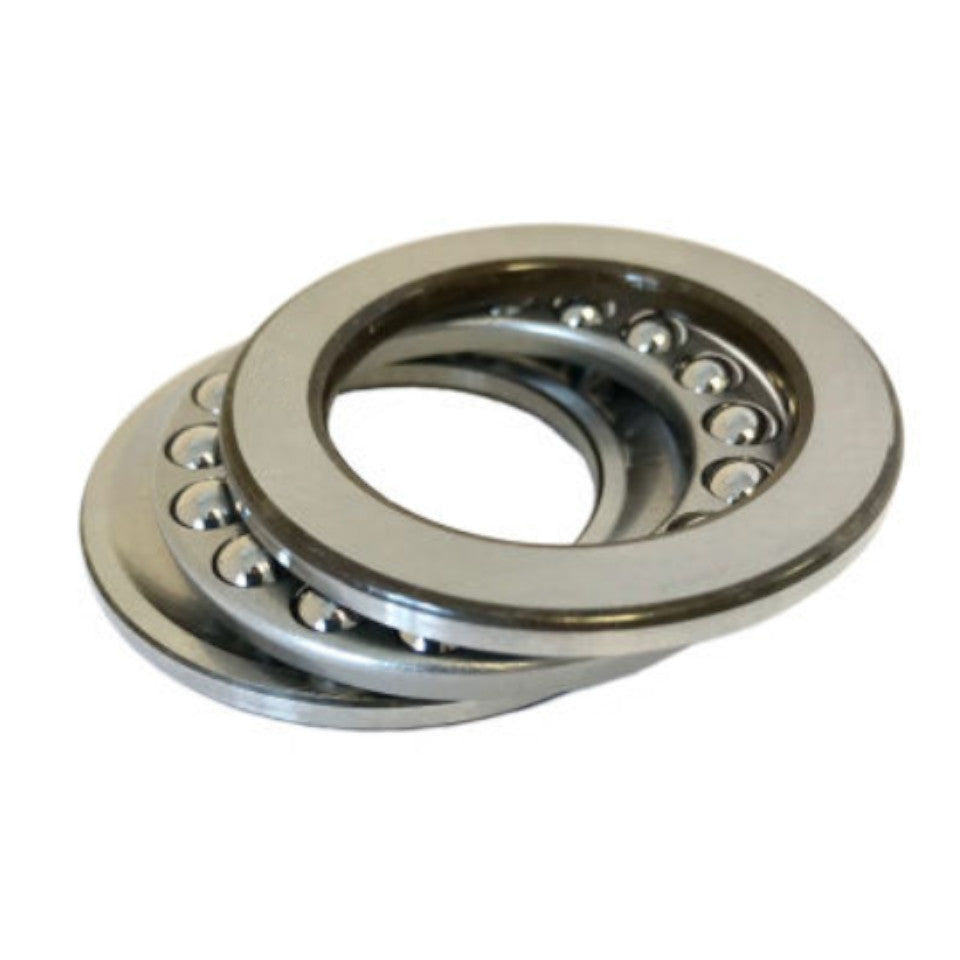

Image is for illustration purposes only.
What 51312 means
| Code | Position | Meaning |
|---|---|---|
5 |
Type | Thrust ball bearing |
1 |
Height series | Height series 1 |
3 |
Diameter series | Diameter series 3 (medium) |
12 |
Bore | Bore code 12 × 5 = 60 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
51312 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 60 mm | 2.3622 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 110 mm | 4.3307 in | Supplier catalogue listing |
| Height (H) | 35 mm | 1.378 in | Supplier catalogue listing |
| Bearing type | Thrust ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
51312 is a thrust ball bearing, 60 mm bore × 110 mm OD × 35 mm wide (2.3622 × 4.3307 × 1.378 in).
The 51312 is a thrust ball bearing from the 513 series, designed with a 60 mm bore diameter to support axial loads in a single direction. Thrust ball bearings use ball rolling elements between hardened raceways to accommodate pure thrust loads with minimal friction.
Measurement Type
Metric
Inner Diameter (ID)
60 mm
Outside Diameter (OD)
110 mm
Width
35 mm
Sealing
Open
Precision Class
ISO P0
Series
513
Bearing Type
Thrust ball bearing
Other Features
Single Direction | Thrust Ball Bearing | Metric Series
Component
Assembly
Weight (kg)
1.4
Basic Number
51312
UNSPSC
31171552
