51216
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableRegular price
$91.67 USD
Regular price
Sale price
$91.67 USD
Unit price
per
Couldn't load pickup availability
Bore80 mm
3.1496 in
Outside dia.115 mm
4.5276 in
Height28 mm
1.1024 in
TypeThrust ball bearing
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

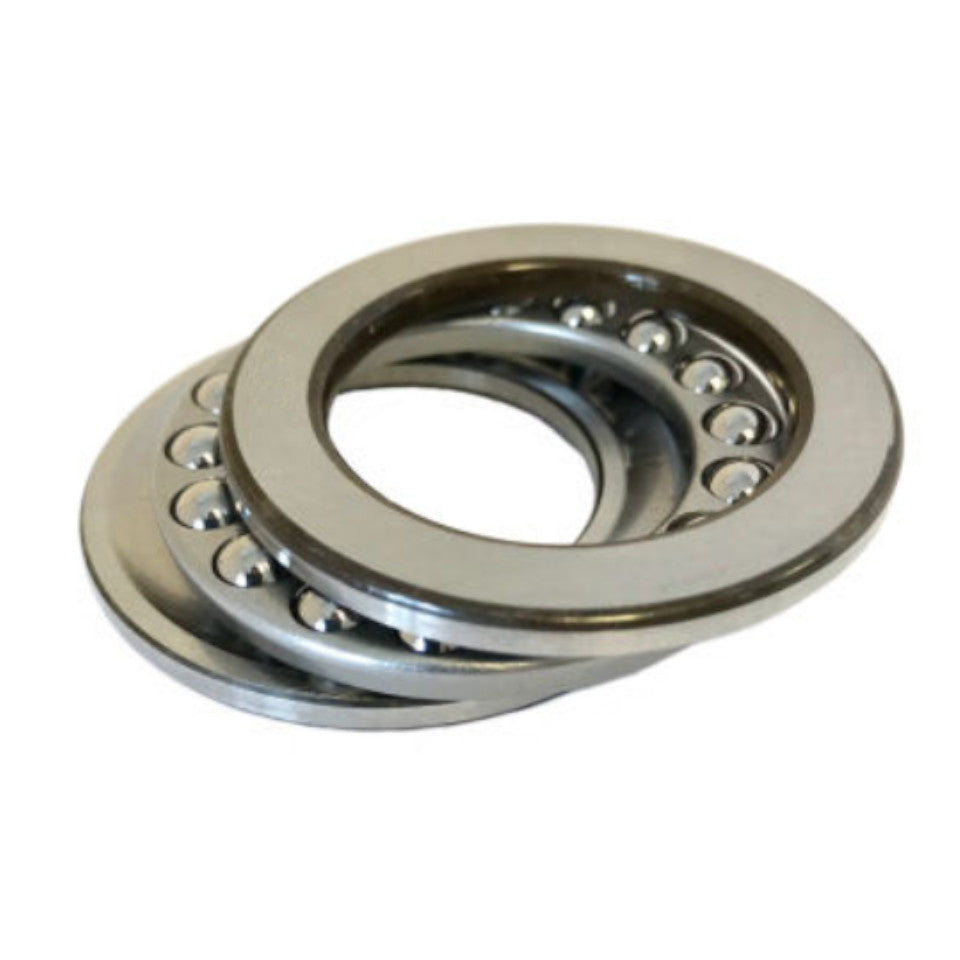

Image is for illustration purposes only.
What 51216 means
| Code | Position | Meaning |
|---|---|---|
5 |
Type | Thrust ball bearing |
1 |
Height series | Height series 1 |
2 |
Diameter series | Diameter series 2 (light) |
16 |
Bore | Bore code 16 × 5 = 80 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
51216 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 80 mm | 3.1496 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 115 mm | 4.5276 in | Supplier catalogue listing |
| Height (H) | 28 mm | 1.1024 in | Supplier catalogue listing |
| Bearing type | Thrust ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
51216 is a thrust ball bearing, 80 mm bore × 115 mm OD × 28 mm wide (3.1496 × 4.5276 × 1.1024 in).
Measurement Type
Metric
Inner Diameter (ID)
80 mm
Outside Diameter (OD)
115 mm
Width
28 mm
Sealing
Open
Precision Class
ISO P0
Other Features
Single Direction | Thrust Ball Bearing | Metric Series
Component
Assembly
Weight (kg)
0.95
Basic Number
51216
UNSPSC
31171552
