33205J
Tier-one manufacturer — brand supplied may vary ✓ Verified against manufacturer sourcesCouldn't load pickup availability

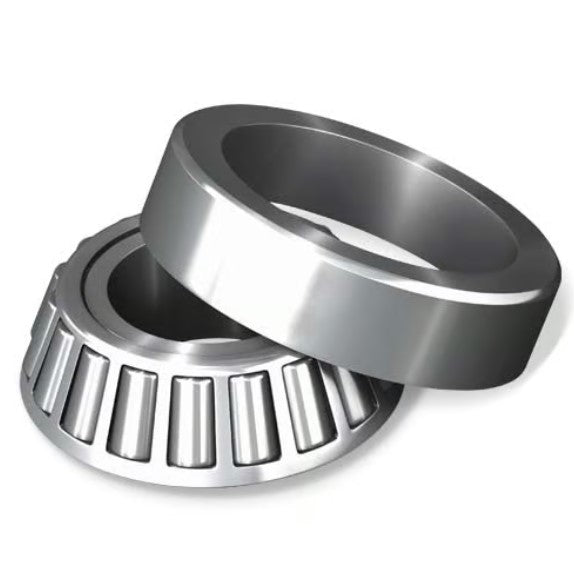

Image is for illustration purposes only.
What 33205J means
| Code | Position | Meaning |
|---|---|---|
3 |
Type | Tapered roller bearing (metric) |
3 |
Width series | Width series 3 |
2 |
Diameter series | Diameter series 2 (light) |
05 |
Bore | Bore code 05 × 5 = 25 mm |
J |
Cage | Pressed steel cage |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
33205J specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 25 mm | 0.9843 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 52 mm | 2.0472 in | Supplier catalogue listing |
| Width, assembled (T) | 22 mm | 0.8661 in | Supplier catalogue listing |
| Bearing type | Tapered roller bearing (metric, ISO 355) | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Cage | Pressed steel cage | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 33205J | Timken Interchange Guide |
| TIMKEN | 33205 | Timken Interchange Guide |
| FAG | 33205 | SKF Master Interchange |
| NTN | 33205 | SKF Master Interchange |
Also listed in manufacturer interchange tables (3): confirm suffix codes before ordering
- SKF 33205Q (SKF Master Interchange)
- NTN 33205STV2 (SKF Master Interchange)
- KOYO 33205JR (SKF Master Interchange)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
33205J is a tapered roller bearing (metric, ISO 355), 25 mm bore × 52 mm OD × 22 mm wide (0.9843 × 2.0472 × 0.8661 in). It has a pressed steel cage. Published interchange tables list it as equivalent to SKF 33205J, TIMKEN 33205, FAG 33205, NTN 33205.
The 33205J is a metric tapered roller bearing with a 25 mm bore diameter from the ISO 355 series 332 family. Tapered roller bearings use conical rolling elements between inner and outer race cones to handle combined radial and axial loads in a single direction.
