33206J
Tier-one manufacturer — brand supplied may vary ✓ Verified against manufacturer sourcesCouldn't load pickup availability

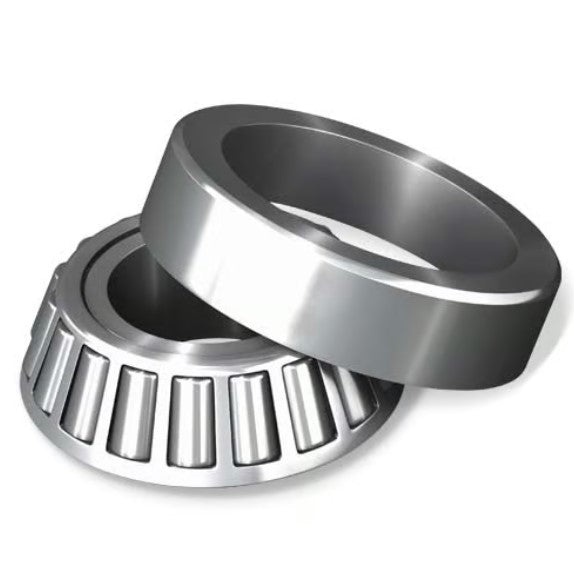

Image is for illustration purposes only.
What 33206J means
| Code | Position | Meaning |
|---|---|---|
3 |
Type | Tapered roller bearing (metric) |
3 |
Width series | Width series 3 |
2 |
Diameter series | Diameter series 2 (light) |
06 |
Bore | Bore code 06 × 5 = 30 mm |
J |
Cage | Pressed steel cage |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
33206J specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 30 mm | 1.1811 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 62 mm | 2.4409 in | Two independent catalogue sources agree |
| Width, assembled (T) | 25 mm | 0.9843 in | Two independent catalogue sources agree |
| Bearing type | Tapered roller bearing (metric, ISO 355) | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Cage | Pressed steel cage | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 33206J | Timken Interchange Guide |
| TIMKEN | 33206 | Timken Interchange Guide |
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
33206J is a tapered roller bearing (metric, ISO 355), 30 mm bore × 62 mm OD × 25 mm wide (1.1811 × 2.4409 × 0.9843 in). It has a pressed steel cage. Published interchange tables list it as equivalent to SKF 33206J, TIMKEN 33206.
The 33206J is a metric tapered roller bearing with a 30mm bore diameter, 62mm outside diameter, and 25mm width. This single-row tapered roller bearing design uses conical rolling elements to support combined radial and axial loads in one direction.
33206J Tapered Roller Metric Type
