33024M90NM1
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableCouldn't load pickup availability

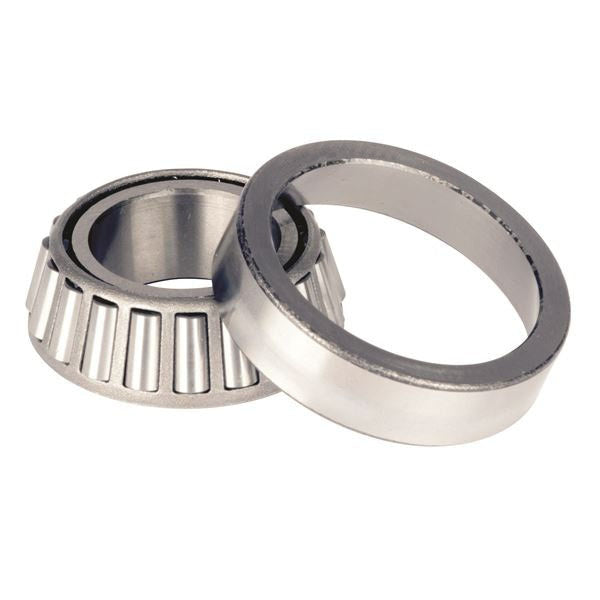

Image is for illustration purposes only.
What 33024M90NM1 means
| Code | Position | Meaning |
|---|---|---|
3 |
Type | Tapered roller bearing (metric) |
3 |
Width series | Width series 3 |
0 |
Diameter series | Diameter series 0 (extra light) |
24 |
Bore | Bore code 24 × 5 = 120 mm |
M90NM |
Maker code | Manufacturer-specific code, not decoded here. Ask us if it matters for your application. |
1 |
Maker code | Manufacturer-specific code, not decoded here. Ask us if it matters for your application. |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Codes marked "not decoded" are maker-specific; ask us if one matters for your application. Decode any other number with the bearing number decoder.
33024M90NM1 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 120 mm | 4.7244 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 180 mm | 7.0866 in | Supplier catalogue listing |
| Width, assembled (T) | 48 mm | 1.8898 in | Supplier catalogue listing |
| Bearing type | Tapered roller bearing (metric, ISO 355) | Stated by the designation | |
| Seals / shields | Open | Supplier catalogue listing | |
| Cage | Stamped Steel Cage-cone backface clearance:3.8 mm | Supplier catalogue listing | |
| Configuration | Matched bearing assembly (90-series assembly suffix) | Stated by the designation | |
33024M90NM1 is a tapered roller bearing (metric, ISO 355), 120 mm bore × 180 mm OD × 48 mm wide (4.7244 × 7.0866 × 1.8898 in).
The 33024M-90NM1 is a metric tapered roller bearing with a 120 mm bore diameter, designed to handle combined radial and axial loads in a single direction. This matched bearing assembly from the 330 series provides precise preload settings and simplified mounting for heavy-duty applications.
33024M-90NM1 TRB Metric Assembly 4-8 OD
