33024

Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sources
$363.01 USD
$363.01 USD
Sale Sold out
Bore120 mm 4.7244 in
Outside dia.180 mm 7.0866 in
Width, assembled48 mm 1.8898 in
TypeTapered roller bearing (metric, ISO 355)
SealingOpen
Flat-rate shipping — calculated by weight at checkout
1 1

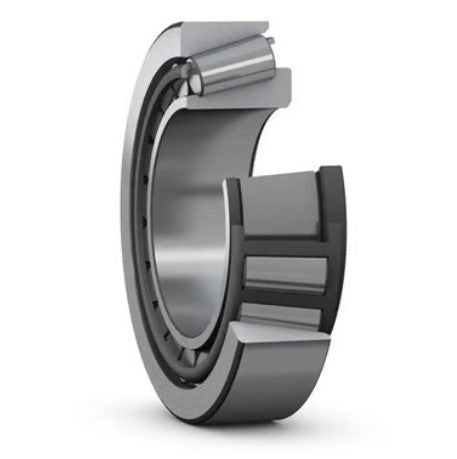

Image is for illustration purposes only.

What 33024 means

CodePositionMeaning
3 Type Tapered roller bearing (metric)
3 Width series Width series 3
0 Diameter series Diameter series 0 (extra light)
24 Bore Bore code 24 × 5 = 120 mm

Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.

33024 specifications

Specification Metric Inch Basis
Bore (d) 120 mm 4.7244 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 180 mm 7.0866 in Two independent catalogue sources agree
Width, assembled (T) 48 mm 1.8898 in Two independent catalogue sources agree
Bearing type Tapered roller bearing (metric, ISO 355) Stated by the designation
Seals / shields Open (no seals or shields) Stated by the designation
Tolerance class Normal (ISO P0 / ABEC 1): no tolerance-class code Stated by the designation

33024 is a tapered roller bearing (metric, ISO 355), 120 mm bore × 180 mm OD × 48 mm wide (4.7244 × 7.0866 × 1.8898 in).

The 33024 is a metric tapered roller bearing conforming to ISO 355 standards, featuring a 120 mm bore diameter. This single-row design uses tapered raceways and rolling elements to handle combined radial and axial loads efficiently.
