32224M-90KM1
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability

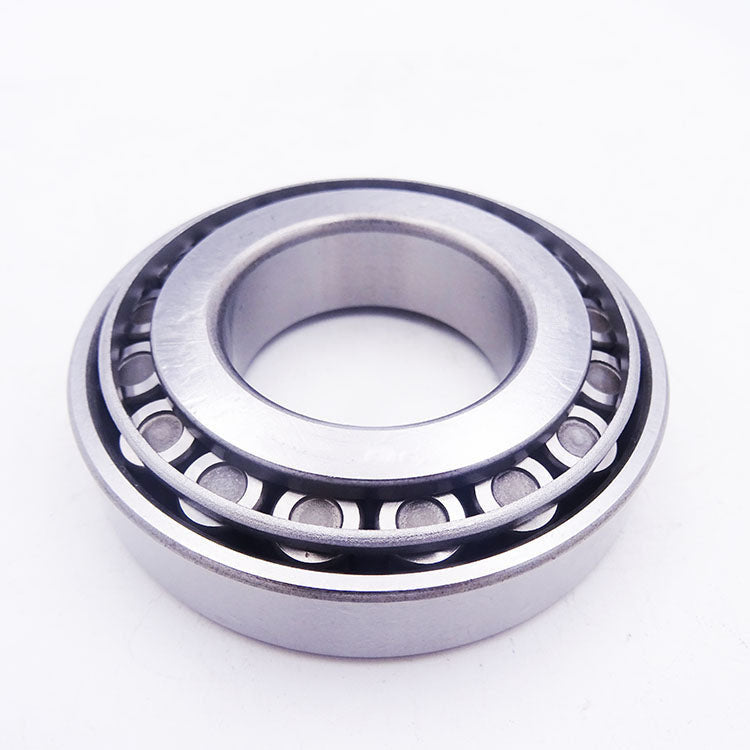

Image is for illustration purposes only.
What 32224M-90KM1 means
| Code | Position | Meaning |
|---|---|---|
3 |
Type | Tapered roller bearing (metric) |
2 |
Width series | Width series 2 |
2 |
Diameter series | Diameter series 2 (light) |
24 |
Bore | Bore code 24 × 5 = 120 mm |
M90KM |
Maker code | Manufacturer-specific code, not decoded here. Ask us if it matters for your application. |
1 |
Maker code | Manufacturer-specific code, not decoded here. Ask us if it matters for your application. |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Codes marked "not decoded" are maker-specific; ask us if one matters for your application. Decode any other number with the bearing number decoder.
32224M-90KM1 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 120 mm | 4.7244 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 215 mm | 8.4646 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Width, assembled (T) | 61.5 mm | 2.4213 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Bearing type | Tapered roller bearing (metric, ISO 355) | Stated by the designation | |
| Seals / shields | Open | Supplier catalogue listing | |
| Bore | Tapered bore (1:12) | Stated by the designation | |
| Configuration | Matched bearing assembly (90-series assembly suffix) | Stated by the designation | |
Equivalent to / interchanges with
Also listed in manufacturer interchange tables (1): confirm suffix codes before ordering
- TIMKEN 32224M (Timken Interchange Guide)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
32224M-90KM1 is a tapered roller bearing (metric, ISO 355), 120 mm bore × 215 mm OD × 61.5 mm wide (4.7244 × 8.4646 × 2.4213 in). It has a tapered bore (1:12).
The 32224M-90KM1 is a metric tapered roller bearing assembly featuring a 120 mm bore diameter with a 1:12 tapered bore configuration. This matched bearing assembly is designed to handle combined radial and axial loads with the geometry optimized for metric ISO 355 specifications.
