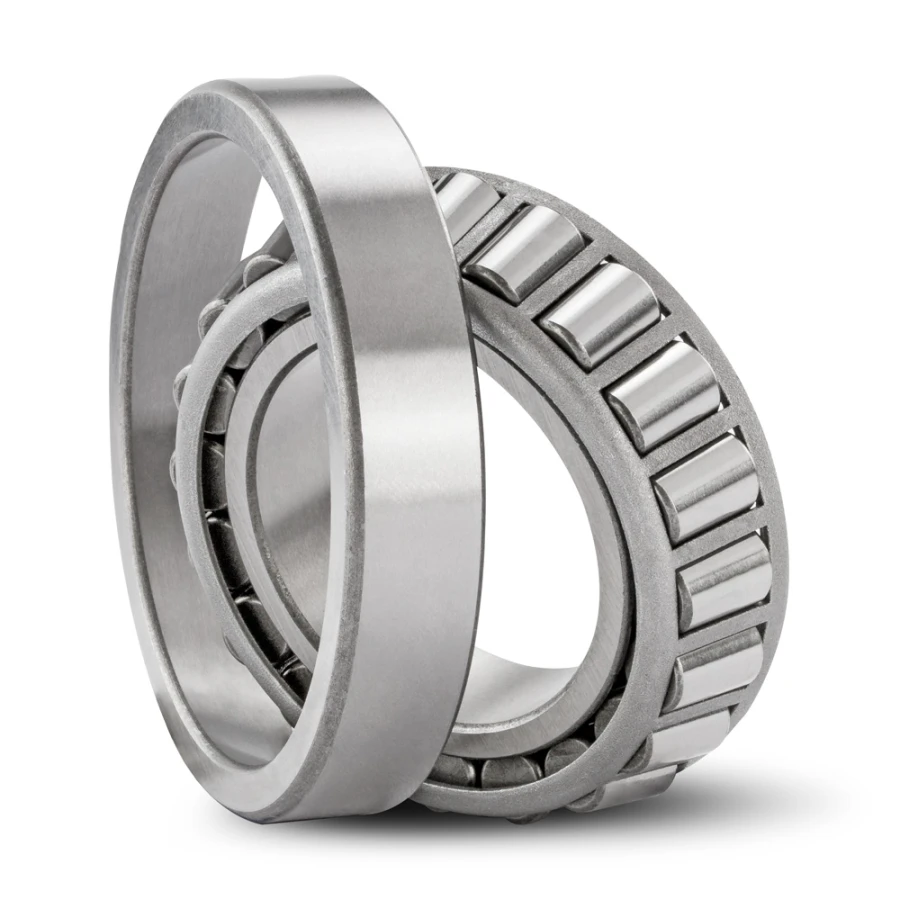

Image is for illustration purposes only.
32224
The 32224 is a metric tapered roller bearing with a 120mm bore diameter, conforming to ISO 355 standards. Tapered roller bearings use conical rolling elements between inner and outer ring raceways to handle combined radial and axial loads simultaneously.
This bearing type is commonly used in heavy industrial applications including gearboxes, wheel hubs, conveyor systems, and machine tool spindles where both radial and thrust loads are present. The tapered geometry allows for precise adjustment of bearing clearance during installation.
Interchange / cross reference
TIMKEN 32224M
Cross-references are provided as a guide — verify dimensions and fit for your application.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
120 mm
Outside Diameter (OD)
215 mm
Width
61.5 mm
Sealing
Open
Precision Class
ISO P0
Series
322
Bearing Type
Tapered roller bearing
Other Features
Single Row | Tapered Roller Bearing
Component
Assembly
Number of Tapered Rows
1
Weight (kg)
9.04
Basic Number
32224
UNSPSC
31171516
