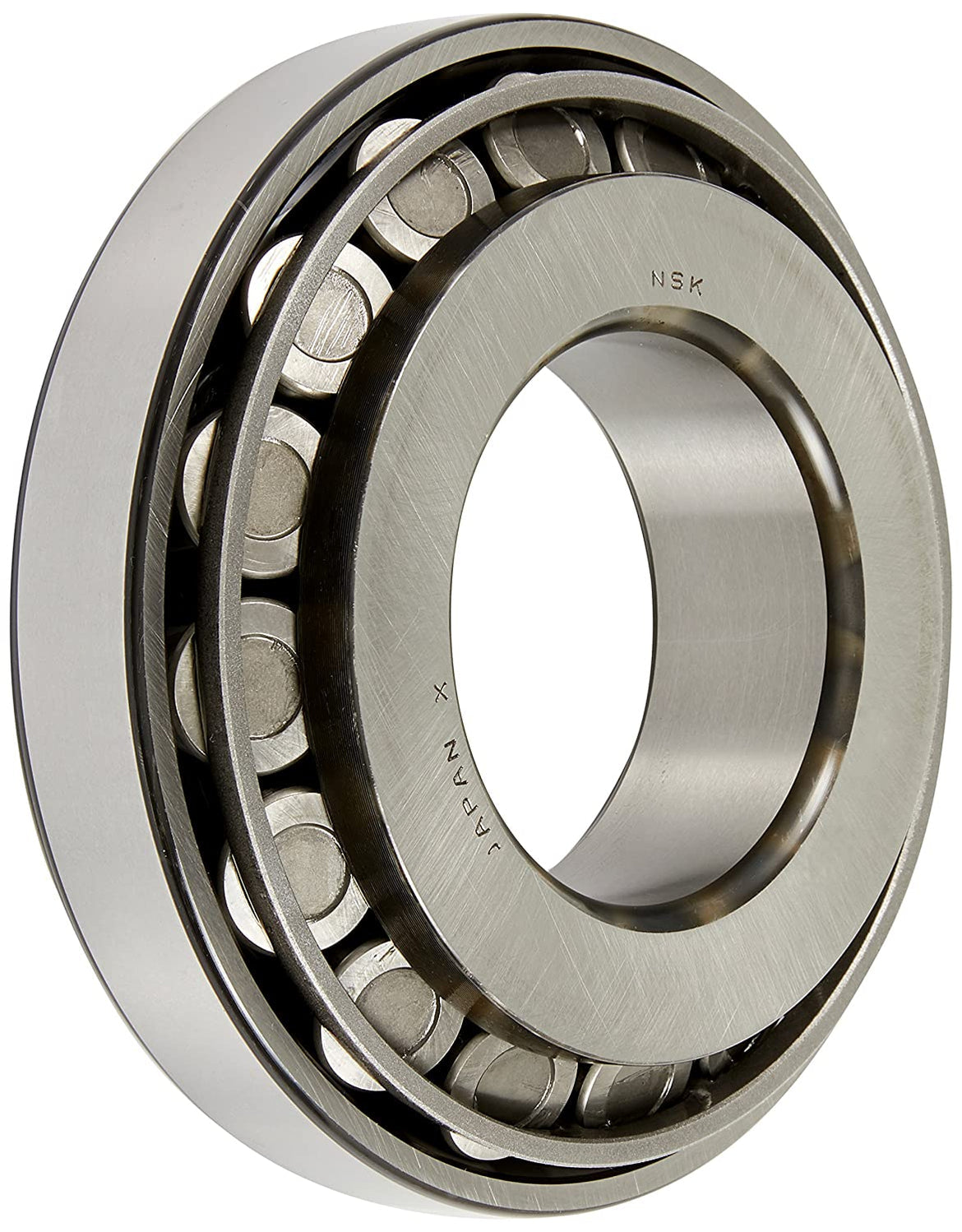

Image is for illustration purposes only.
320/28XJ
The 32028XJ is a single row tapered roller bearing with metric dimensions. This bearing features a tapered raceway design that allows it to support combined radial and axial loads, with the ability to handle thrust loads in one direction.
Tapered roller bearings of this type are commonly used in automotive wheel hubs, gearboxes, transmissions, and industrial machinery where combined loading conditions exist. They are designed for applications requiring high load capacity and can be adjusted for preload or clearance during installation.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
28 mm
Outside Diameter (OD)
52 mm
Width
16 mm
Sealing
Open
Precision Class
ISO P0
Cage
Pressed Steel
Bearing Type
Tapered Roller Bearing
Other Features
Single Row | Tapered Roller Bearing
Component
Assembly
Number of Tapered Rows
1
Weight (kg)
0.15
Basic Number
320/28
UNSPSC
31171516
