32004XJ
Tier-one manufacturer — brand supplied may vary ✓ Verified against manufacturer sourcesCouldn't load pickup availability

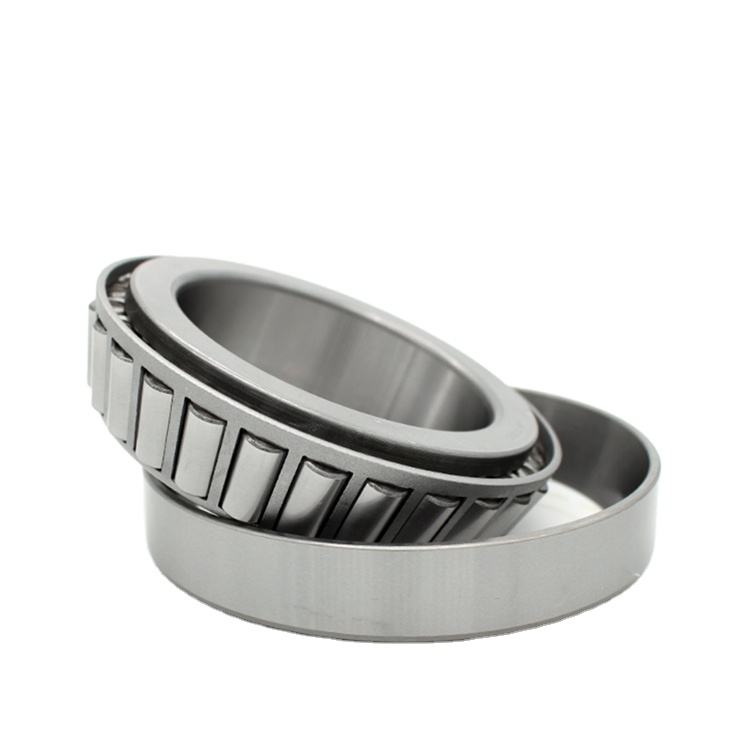

Image is for illustration purposes only.
What 32004XJ means
| Code | Position | Meaning |
|---|---|---|
3 |
Type | Tapered roller bearing (metric) |
2 |
Width series | Width series 2 |
0 |
Diameter series | Diameter series 0 (extra light) |
04 |
Bore | Bore code 04 × 5 = 20 mm |
XJ |
Maker code | Manufacturer-specific code, not decoded here. Ask us if it matters for your application. |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Codes marked "not decoded" are maker-specific; ask us if one matters for your application. Decode any other number with the bearing number decoder.
32004XJ specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 20 mm | 0.7874 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 42 mm | 1.6535 in | Supplier catalogue listing |
| Width, assembled (T) | 15 mm | 0.5906 in | Supplier catalogue listing |
| Bearing type | Tapered roller bearing (metric, ISO 355) | Stated by the designation | |
| Seals / shields | Open | Supplier catalogue listing | |
| Cage | Pressed Steel | Supplier catalogue listing | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 32004XJ | Timken Interchange Guide |
Also listed in manufacturer interchange tables (3): confirm suffix codes before ordering
- SKF 32004XVB014 (Timken Interchange Guide)
- TIMKEN 32004WB (Timken Interchange Guide)
- FAG 32004X (Timken Interchange Guide)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
32004XJ is a tapered roller bearing (metric, ISO 355), 20 mm bore × 42 mm OD × 15 mm wide (0.7874 × 1.6535 × 0.5906 in). Published interchange tables list it as equivalent to SKF 32004XJ.
The 32004XJ is a metric tapered roller bearing from the 320 series with a 20mm bore diameter, conforming to ISO 355 standards. Tapered roller bearings use conical rolling elements between inner and outer race raceways to support combined radial and axial loads.
Outside Diameter Inch: 1.654
Outside Diameter mm: 42
