30TAC72CSUHPN7
Tier-one manufacturer — brand supplied may varyRegular price
$304.88 USD
Regular price
Sale price
$304.88 USD
Unit price
per
Couldn't load pickup availability
Bore
30 mm
1.181 in
Outside dia.
72 mm
2.835 in
Width
19 mm
0.748 in
Type
Angular Contact Spindle Bearing
Sealing
Open
Precision
ABEC 7 | ISO P4
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

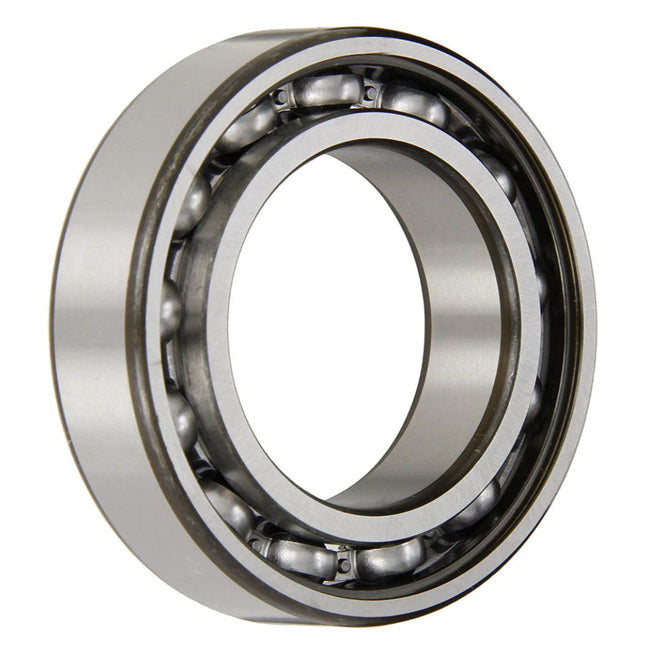

Image is for illustration purposes only.
30TAC72CSUHPN7
The 30TAC72CSUHPN7 is a precision ball screw support bearing designed specifically for supporting and positioning ball screws in machine tool and automation applications. This single bearing configuration provides axial load support with high rigidity and precision class PN7 accuracy.
Ball screw support bearings are commonly used in CNC machines, precision positioning systems, robotics, and industrial automation equipment where accurate linear motion control is required. The CSUH design provides optimized contact angle and preload characteristics for ball screw applications.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
30 mm
Outside Diameter (OD)
72 mm
Width
19 mm
Sealing
Open
Precision Class
ABEC 7 | ISO P4
Arrangement
Single
Cage
Polyamide
Bearing Type
Angular Contact Spindle Bearing
Other Features
Single Row | Angular Contact Thrust Bearing | Ball Screw Support | High Capacity | Bore and OD are Exclusive All Others are ISO 4
Component
Assembly
Weight (kg)
0.42
Basic Number
30TAC72
UNSPSC
31171552
