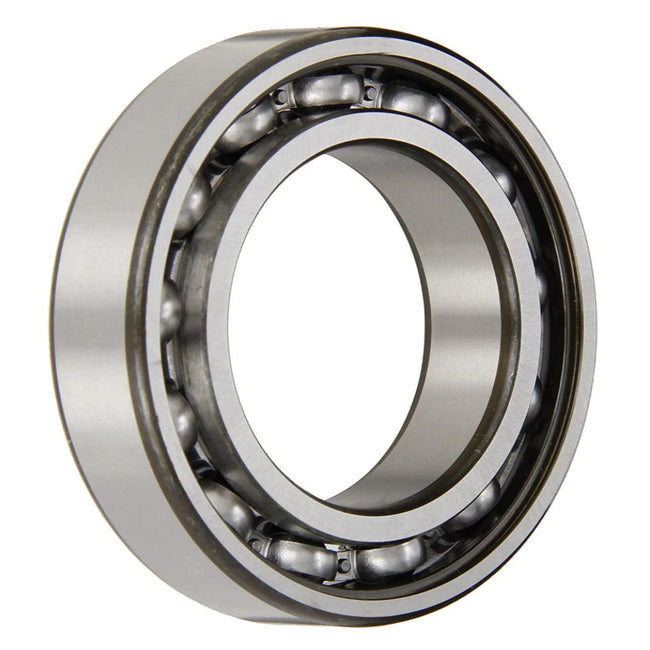

Image is for illustration purposes only.
30TAC72BSUC10PN7B
The 30TAC72BSUC10PN7B is a precision ball screw support bearing designed for high-accuracy applications requiring axial load capacity and minimal friction. This single bearing configuration features a 30mm bore and 72mm outer diameter, engineered specifically to support ball screw assemblies in precision machinery.
Ball screw support bearings are commonly used in CNC machine tools, precision measuring equipment, industrial robots, and semiconductor manufacturing systems where accurate linear motion and rigidity are critical. These bearings are optimized to handle the thrust loads generated by ball screw mechanisms while maintaining precise positioning.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
30 mm
Outside Diameter (OD)
62 mm
Width
15 mm
Sealing
Open
Precision Class
ABEC 7 | ISO P4
Contact Angle
Precision
Arrangement
Single
Bearing Type
Angular Contact Spindle Bearing
Other Features
Single Row | Angular Contact Thrust Bearing | Ball Screw Support | High Capacity | Bore and OD are Exclusive All Others are ISO 4
Component
Assembly
Weight (kg)
0.2
Basic Number
30TAC72
UNSPSC
31171552
