Image is for illustration purposes only.

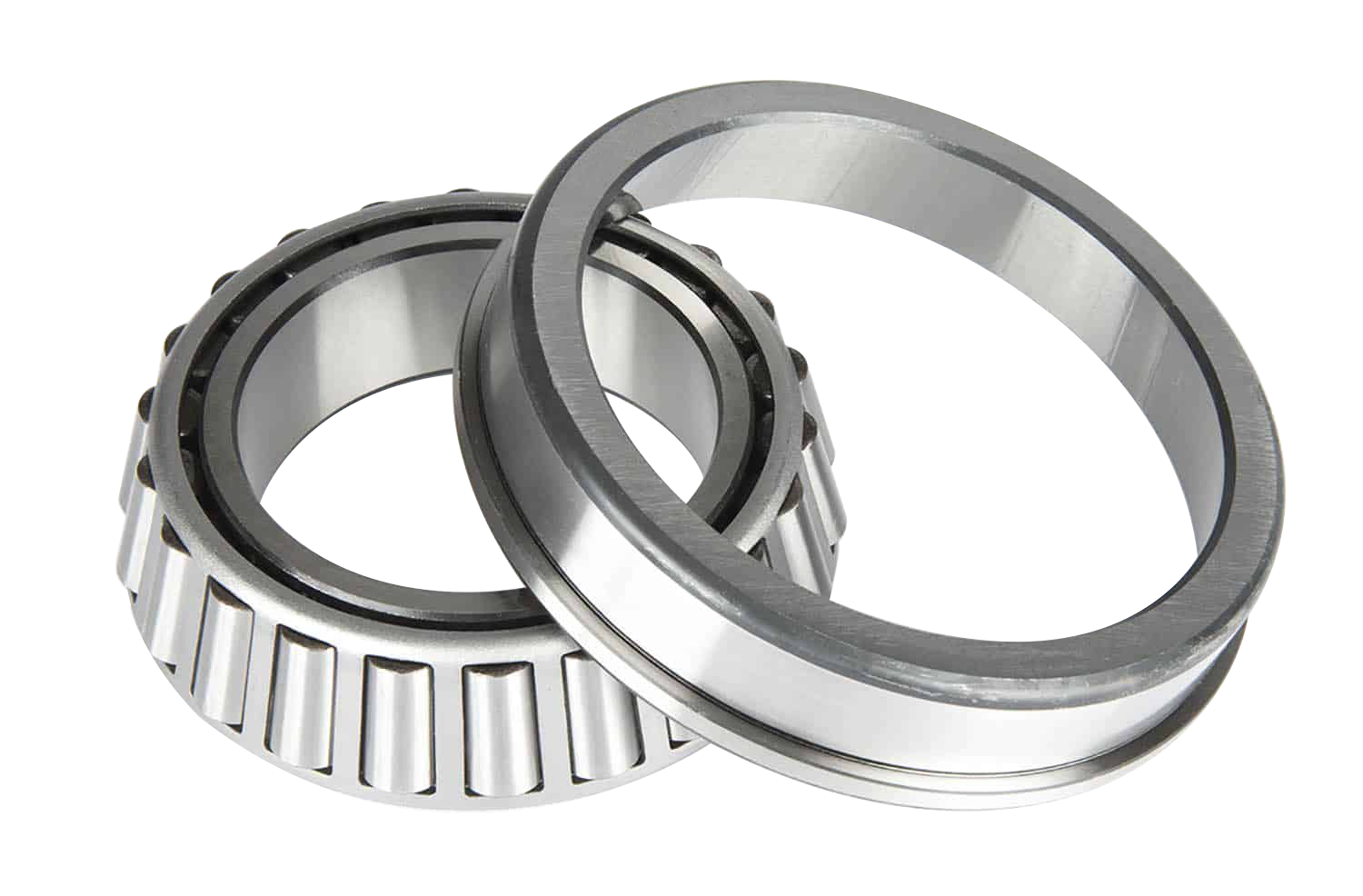

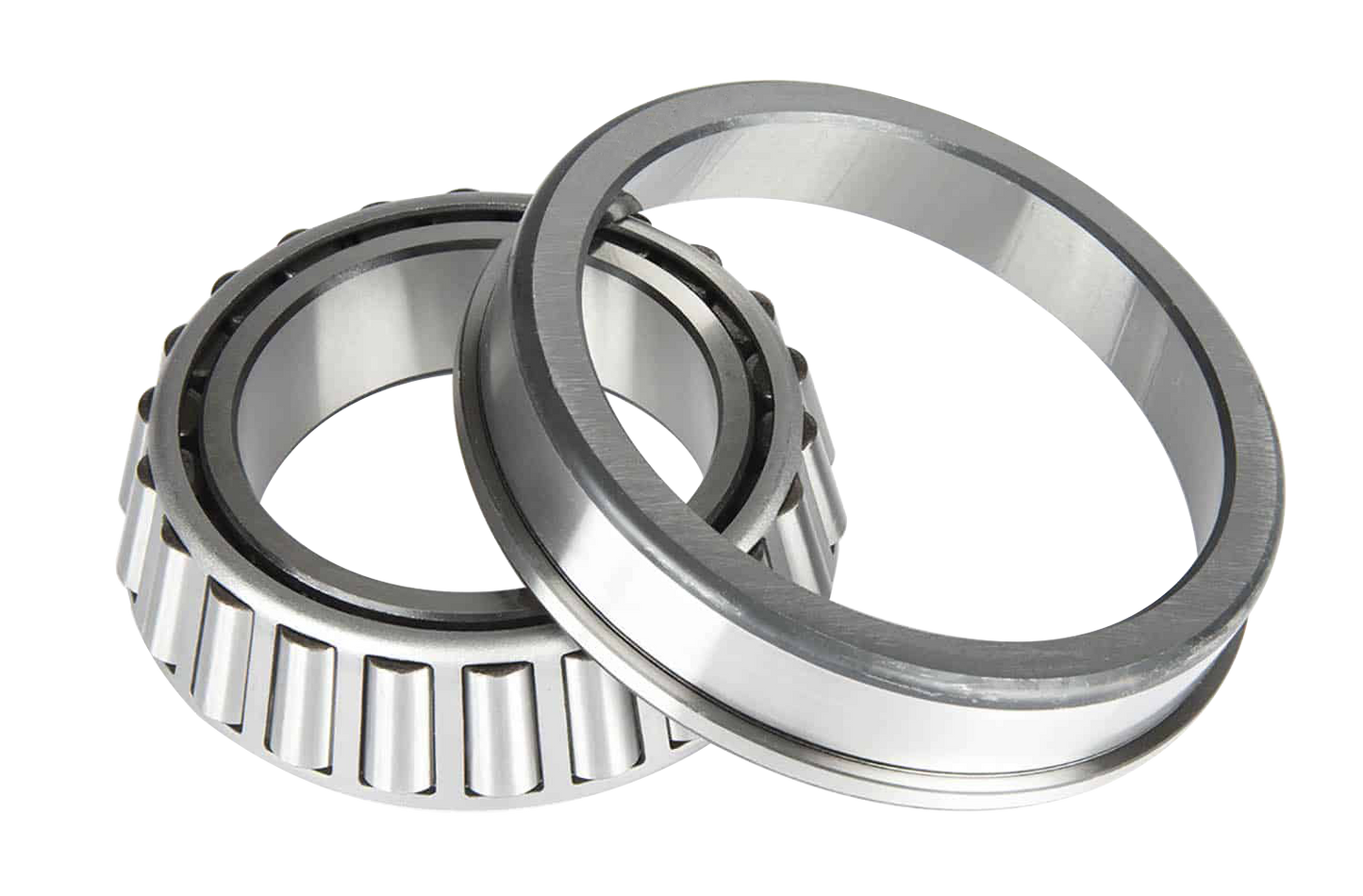

The 29586/29520 is a tapered roller bearing set consisting of a cone (inner ring with rollers and cage) and cup (outer ring). Tapered roller bearings use conical rolling elements to handle combined radial and thrust loads, with load capacity increasing proportionally to bearing size.
This bearing type is commonly used in wheel hubs, gearboxes, axles, and industrial machinery where both radial and axial forces must be supported. The separable design allows for independent mounting of cone and cup assemblies and permits precise adjustment of bearing clearance during installation.
Interchange / cross reference
Cross-references are provided as a guide — verify dimensions and fit for your application.
29586/29520
Bore/Inner Diameter Inch: 2.5
Bore/Inner Diameter mm: 63.5
Outside Diameter Inch: 4.25
Outside Diameter mm: 107.95
Width Inch: 1.0
Width mm: 25.4
