28680/28622

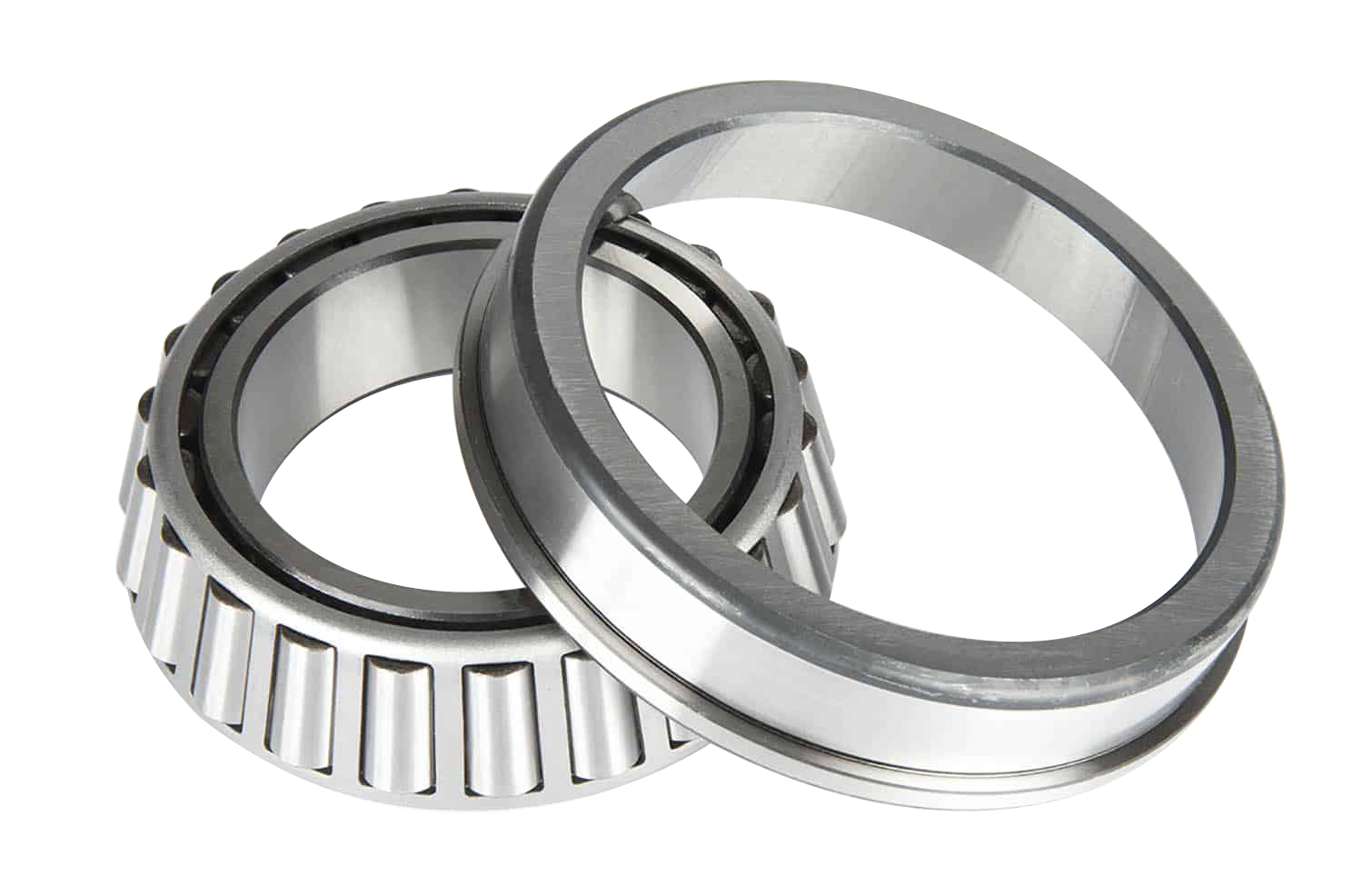

The 28680/28622 is a single row tapered roller bearing set consisting of a cone (inner ring with rollers and cage) and cup (outer ring). This inch-series design provides high radial and thrust load capacity in a separable configuration that simplifies mounting and maintenance.
Tapered roller bearing sets are commonly used in automotive wheel hubs, truck axles, gearboxes, and industrial equipment where combined loads and the need for adjustable clearance are present. The separable design allows the cone and cup to be installed independently.
Interchange / cross reference
ACF 706873ALLISC 064449ALLISC 210715ALLISC 234010ALLISC 4254541AMC 53429AMC 8124840AUSTIN 313324CHICAGO RAWHIDE BR28680CHICAGO RAWHIDE 2868228622CHRYSL 4746918CHRYSL 668101CHRYSL 925175CHRYSL 927015CLARK 742253
Cross-references are provided as a guide — verify dimensions and fit for your application.
For large orders ($2000+) please inquire by email.
Measurement Type
Imperial
Inner Diameter (ID)
2 3/16 in
Outside Diameter (OD)
3.8437 mm / 3.8437 in
Width
0.9688 in
Sealing
Open
Precision Class
ISO P0
Arrangement
One
Ball Material
Case Carburized Steel
Bearing Type
Tapered Roller Bearing
Other Features
Single Row | Tapered Roller Bearing
Component
Assembly
Number of Tapered Rows
1
Weight (kg)
0.75
Basic Number
28680/28622
UNSPSC
31171516
