2322-C3
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableCouldn't load pickup availability
Ships from our European partner stock — allow 5–8 business days

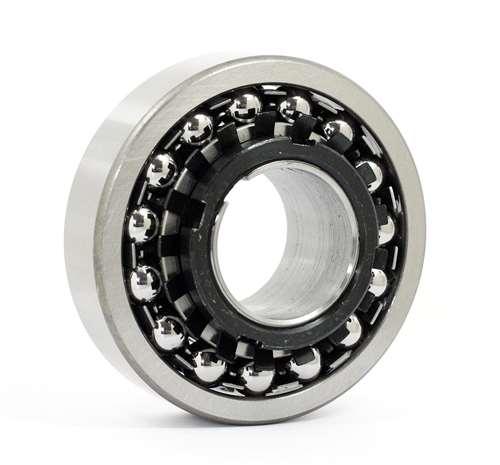

Image is for illustration purposes only.
What 2322-C3 means
| Code | Position | Meaning |
|---|---|---|
23 |
Series | Series 23: self-aligning ball bearing, wide (width series 2), diameter series 3 (medium). The type digit 1 is left out of these numbers |
22 |
Bore | Bore code 22 × 5 = 110 mm |
C3 |
Internal clearance | C3: radial internal clearance greater than Normal |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
2322-C3 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 110 mm | 4.3307 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 240 mm | 9.4488 in | Supplier catalogue listing |
| Width (B) | 80 mm | 3.1496 in | Supplier catalogue listing |
| Bearing type | Self-aligning ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Internal clearance | C3 (greater than Normal) | Stated by the designation | |
| Bore | Cylindrical (straight) bore | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
2322-C3 is a self-aligning ball bearing, 110 mm bore × 240 mm OD × 80 mm wide (4.3307 × 9.4488 × 3.1496 in). It has C3 internal clearance.
Self-aligning ball bearings feature two rows of balls running on a spherical outer ring raceway, allowing the bearing to compensate for angular misalignment between the shaft and housing. This 110mm bore diameter unit from the 23 series includes C3 radial internal clearance, providing greater clearance than standard for applications with thermal expansion or interference fit requirements.
