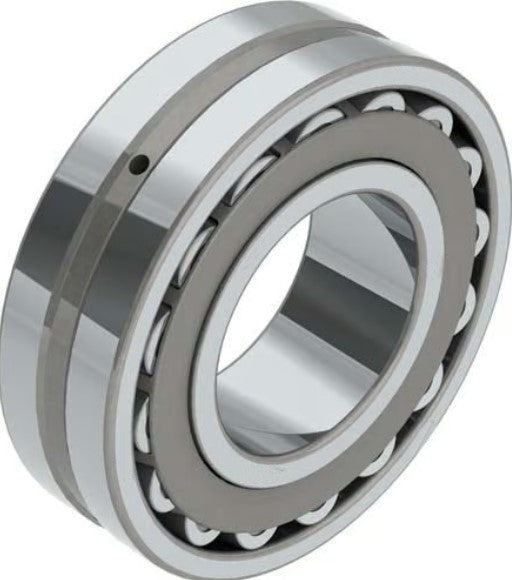

Image is for illustration purposes only.
What 22324 means
| Code | Position | Meaning |
|---|---|---|
2 |
Type | Spherical roller bearing |
2 |
Width series | Width series 2 |
3 |
Diameter series | Diameter series 3 (medium) |
24 |
Bore | Bore code 24 × 5 = 120 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
22324 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 120 mm | 4.7244 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 260 mm | 10.2362 in | Supplier catalogue listing |
| Width (B) | 86 mm | 3.3858 in | Supplier catalogue listing |
| Bearing type | Spherical roller bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Bore | Cylindrical (straight) bore | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
Also listed in manufacturer interchange tables (3): confirm suffix codes before ordering
- SKF 22324CCJA/W33VA405 (NTN spherical roller bearing interchange)
- FAG 22324.E1.T41D (NTN spherical roller bearing interchange)
- NTN 22324EF800 (NTN spherical roller bearing interchange)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
22324 is a spherical roller bearing, 120 mm bore × 260 mm OD × 86 mm wide (4.7244 × 10.2362 × 3.3858 in).
Spherical roller bearings feature two rows of barrel-shaped rollers running on a common sphered outer ring raceway, providing self-aligning capability to compensate for shaft deflection and misalignment. The 22324 has a 120mm bore diameter and belongs to the 223 series.
