22324-C3
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableRegular price
$806.00 USD
Regular price
Sale price
$806.00 USD
Unit price
per
Couldn't load pickup availability
Bore120 mm
4.7244 in
Outside dia.260 mm
10.2362 in
Width86 mm
3.3858 in
TypeSpherical roller bearing
SealingOpen
ClearanceC3
Ships separately from our European warehouse — shipping from $79, quoted at checkout
Ships from our European partner stock — allow 5–8 business days
Ships from our European partner stock — allow 5–8 business days

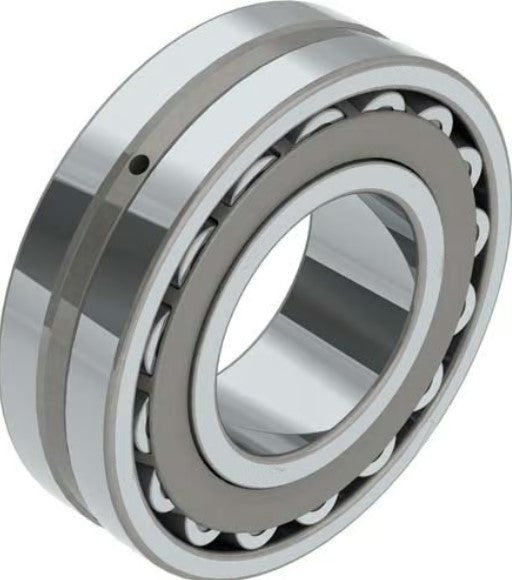

Image is for illustration purposes only.
What 22324-C3 means
| Code | Position | Meaning |
|---|---|---|
2 |
Type | Spherical roller bearing |
2 |
Width series | Width series 2 |
3 |
Diameter series | Diameter series 3 (medium) |
24 |
Bore | Bore code 24 × 5 = 120 mm |
C3 |
Internal clearance | C3: radial internal clearance greater than Normal |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
22324-C3 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 120 mm | 4.7244 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 260 mm | 10.2362 in | Supplier catalogue listing |
| Width (B) | 86 mm | 3.3858 in | Supplier catalogue listing |
| Bearing type | Spherical roller bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Internal clearance | C3 (greater than Normal) | Stated by the designation | |
| Bore | Cylindrical (straight) bore | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
22324-C3 is a spherical roller bearing, 120 mm bore × 260 mm OD × 86 mm wide (4.7244 × 10.2362 × 3.3858 in). It has C3 internal clearance.
The 22324-C3 is a spherical roller bearing with a 120 mm bore diameter from the 223 series. It features C3 radial internal clearance, providing greater clearance than standard for applications requiring accommodation of thermal expansion or shaft deflection.
Inner Diameter (ID)
120 mm
Series
223
Bearing Type
Spherical roller bearing
