22320-C4
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableCouldn't load pickup availability
Ships from our European partner stock — allow 5–8 business days

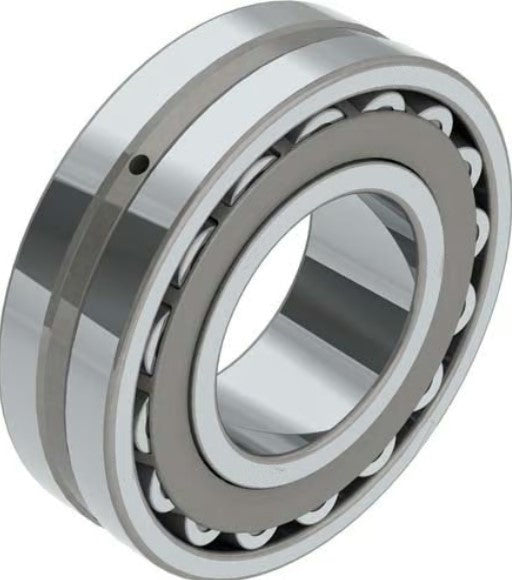

Image is for illustration purposes only.
What 22320-C4 means
| Code | Position | Meaning |
|---|---|---|
2 |
Type | Spherical roller bearing |
2 |
Width series | Width series 2 |
3 |
Diameter series | Diameter series 3 (medium) |
20 |
Bore | Bore code 20 × 5 = 100 mm |
C4 |
Internal clearance | C4: radial internal clearance greater than C3 |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
22320-C4 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 100 mm | 3.937 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 215 mm | 8.4646 in | Supplier catalogue listing |
| Width (B) | 73 mm | 2.874 in | Supplier catalogue listing |
| Bearing type | Spherical roller bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Internal clearance | C4 (greater than C3) | Stated by the designation | |
| Bore | Cylindrical (straight) bore | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
Also listed in manufacturer interchange tables (1): confirm suffix codes before ordering
- TIMKEN 22320EMW33W800C4 (NTN spherical roller bearing interchange)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
22320-C4 is a spherical roller bearing, 100 mm bore × 215 mm OD × 73 mm wide (3.937 × 8.4646 × 2.874 in). It has C4 internal clearance.
The 22320-C4 is a spherical roller bearing with a 100 mm bore diameter from the 223 series. It features C4 internal radial clearance, which is greater than C3 clearance and accommodates thermal expansion or interference fit conditions requiring additional internal space.
