22309K-C3
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableCouldn't load pickup availability
Ships from our European partner stock — allow 5–8 business days

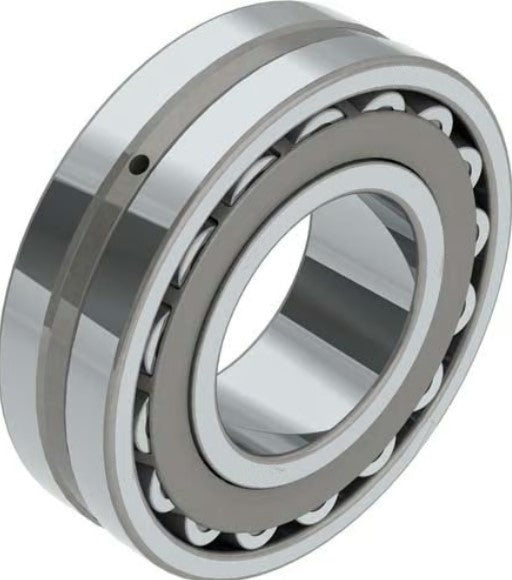

Image is for illustration purposes only.
What 22309K-C3 means
| Code | Position | Meaning |
|---|---|---|
2 |
Type | Spherical roller bearing |
2 |
Width series | Width series 2 |
3 |
Diameter series | Diameter series 3 (medium) |
09 |
Bore | Bore code 09 × 5 = 45 mm |
K |
Bore type | Tapered bore, taper 1:12 (mounts on an adapter or withdrawal sleeve) |
C3 |
Internal clearance | C3: radial internal clearance greater than Normal |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
22309K-C3 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 45 mm | 1.7717 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 100 mm | 3.937 in | Supplier catalogue listing |
| Width (B) | 36 mm | 1.4173 in | Supplier catalogue listing |
| Bearing type | Spherical roller bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Internal clearance | C3 (greater than Normal) | Stated by the designation | |
| Bore | Tapered bore (1:12) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
22309K-C3 is a spherical roller bearing, 45 mm bore × 100 mm OD × 36 mm wide (1.7717 × 3.937 × 1.4173 in). It has C3 internal clearance and a tapered bore (1:12).
The 22309K-C3 is a spherical roller bearing with a 45 mm tapered bore (1:12 taper) and C3 radial clearance. The tapered bore design allows for mounting directly on tapered shafts or on cylindrical shafts using adapter sleeves or withdrawal sleeves. The C3 clearance provides greater internal clearance than standard, accommodating thermal expansion and shaft deflection.
