2219K
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableRegular price
$958.90 USD
Regular price
Sale price
$958.90 USD
Unit price
per
Couldn't load pickup availability
Bore95 mm
3.7402 in
Outside dia.170 mm
6.6929 in
Width43 mm
1.6929 in
TypeSelf-aligning ball bearing
SealingOpen
ClearanceNormal
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

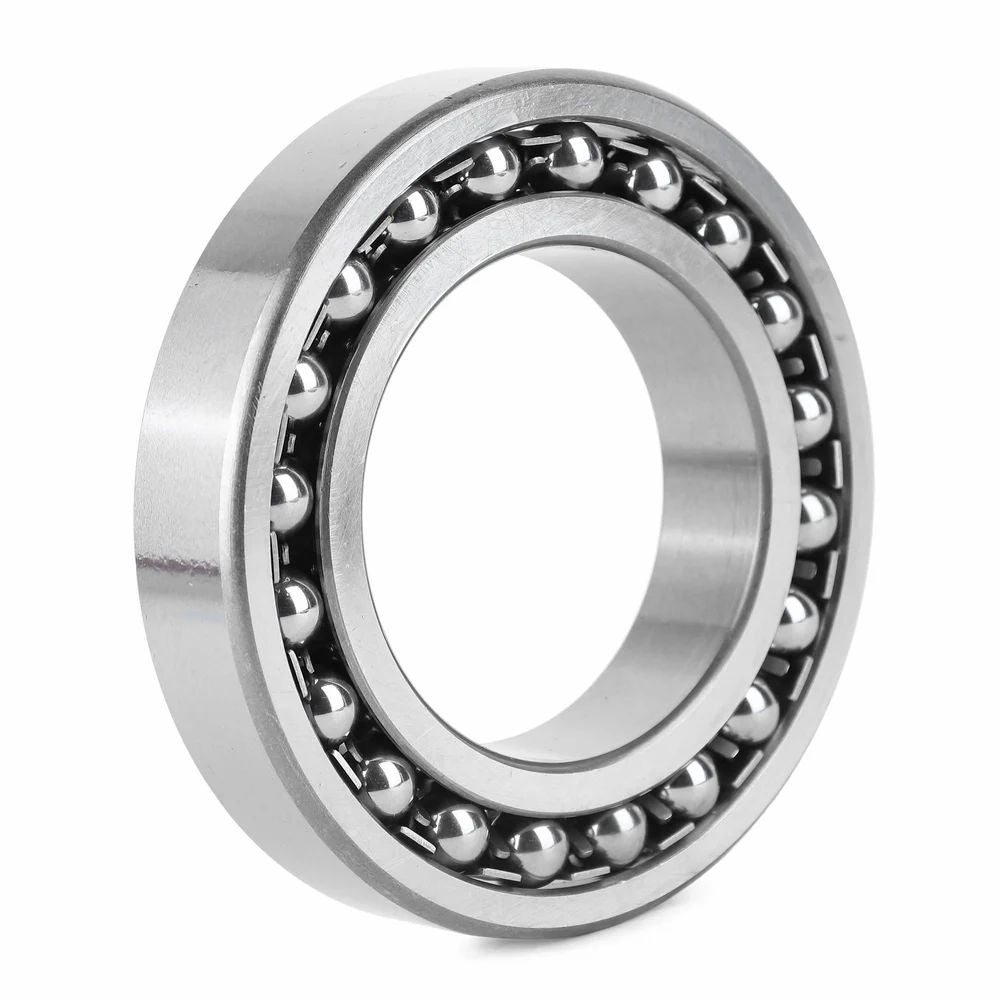

Image is for illustration purposes only.
What 2219K means
| Code | Position | Meaning |
|---|---|---|
22 |
Series | Series 22: self-aligning ball bearing, wide (width series 2), diameter series 2 (light). The type digit 1 is left out of these numbers |
19 |
Bore | Bore code 19 × 5 = 95 mm |
K |
Bore type | Tapered bore, taper 1:12 (mounts on an adapter or withdrawal sleeve) |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
2219K specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 95 mm | 3.7402 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 170 mm | 6.6929 in | Supplier catalogue listing |
| Width (B) | 43 mm | 1.6929 in | Supplier catalogue listing |
| Bearing type | Self-aligning ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Bore | Tapered bore (1:12) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
| Material | Steel | Supplier catalogue listing | |
2219K is a self-aligning ball bearing, 95 mm bore × 170 mm OD × 43 mm wide (3.7402 × 6.6929 × 1.6929 in). It has a tapered bore (1:12).
The 2219K is a self-aligning ball bearing with a tapered bore (1:12 taper) and 95mm bore diameter from the 22 series. Self-aligning ball bearings feature two rows of balls running on a spherical outer ring raceway, allowing the bearing to accommodate shaft misalignment and deflection.
2219K Extra Small/Small Size Ball BG Self-Aligning Ball Bearing
Measurement Type
Metric
Inner Diameter (ID)
95 mm
Outside Diameter (OD)
170 mm
Width
43 mm
Sealing
Open
Precision Class
ISO P0
Ball Material
Steel
Series
22
Bearing Type
Self-aligning ball bearing
Other Features
Double Row | Self Aligning Ball Bearing | 1:12 Tapered Bore
Component
Assembly
Weight (kg)
3.82
Basic Number
2219
UNSPSC
31171532
