2205K

Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sources
$23.97 USD
$23.97 USD
Sale Sold out
Bore25 mm 0.9843 in
Outside dia.52 mm 2.0472 in
Width18 mm 0.7087 in
TypeSelf-aligning ball bearing
SealingOpen
ClearanceNormal
Flat-rate shipping — calculated by weight at checkout

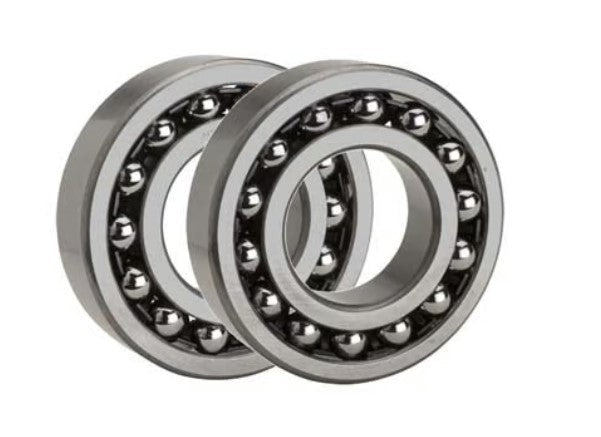

  • 2205K Self Aligning Bearings
1 1

Image is for illustration purposes only.

What 2205K means

CodePositionMeaning
22 Series Series 22: self-aligning ball bearing, wide (width series 2), diameter series 2 (light). The type digit 1 is left out of these numbers
05 Bore Bore code 05 × 5 = 25 mm
K Bore type Tapered bore, taper 1:12 (mounts on an adapter or withdrawal sleeve)

Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.

2205K specifications

Specification Metric Inch Basis
Bore (d) 25 mm 0.9843 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 52 mm 2.0472 in Two independent catalogue sources agree
Width (B) 18 mm 0.7087 in Two independent catalogue sources agree
Bearing type Self-aligning ball bearing Stated by the designation
Seals / shields Open (no seals or shields) Stated by the designation
Internal clearance Normal (CN): no clearance code in the designation Stated by the designation
Bore Tapered bore (1:12) Stated by the designation
Tolerance class Normal (ISO P0 / ABEC 1): no tolerance-class code Stated by the designation

2205K is a self-aligning ball bearing, 25 mm bore × 52 mm OD × 18 mm wide (0.9843 × 2.0472 × 0.7087 in). It has a tapered bore (1:12).

Related sizes & variants

  • 2205-2RS · 25×52×18 mm · Double Sealed
  • 2205-K-2RS · 25×52×18 mm · Double Sealed
  • 2205 · 25×52×18 mm · Open
  • 2204-2RS · 20×47×18 mm · Double Sealed
  • 2206-2RS · 30×62×20 mm · Double Sealed
  • 2206K · 30×62×20 mm · Open
