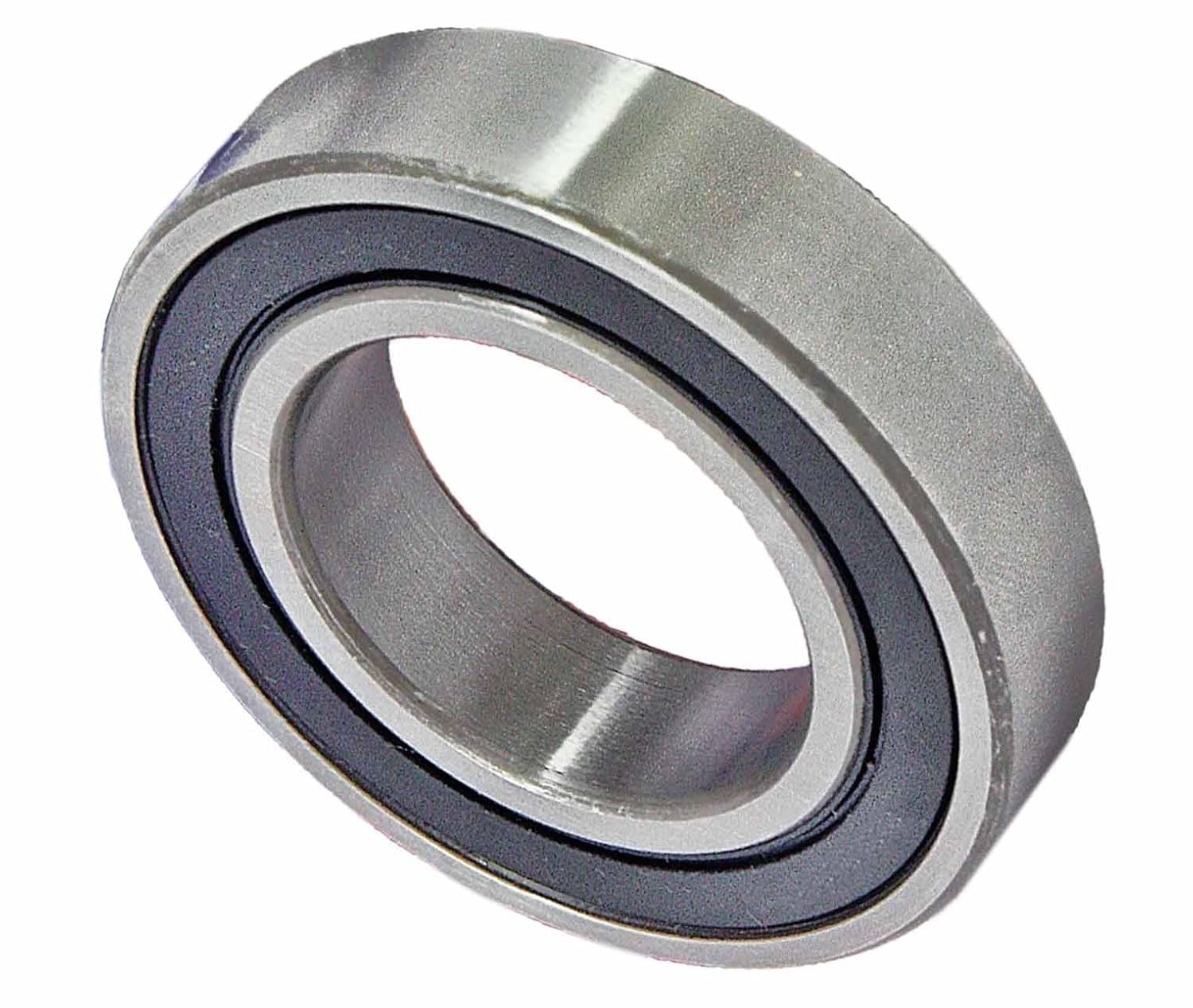

1630-2RS

1600 Series 1630-2RS

Commercial Inch 1600 Series Ball Bearings Commercial Inch Series Bearings are also commonly known by their numeric series name, the "1600 Series Ball Bearings. They typically incorporate 52100 steel, and are made to ABEC-1 precision tolerances. While these bearings are not electric motor quality as standard, they can be manufactured to E.M.Q. standards upon special request. This series is available in open, shielded, and sealed configurations. Standard bore sizes start at 3/16 and go up to 1-5/16". This commercial inch bearings series should not be confused with the R-Series precision inch bearings or other ball bearings that are also manufactured in inch dimensions.

Bore Fraction: 3/4"

Bore Decimal: 0.7500

OD Fraction: 1-5/8"

OD Decimal: 1.6250

W Fraction: 1/2"

W Decimal: 0.5000

ABEC: ABEC-1

Static Load Rating: 454

Enclosure: Double Sealed

Interchange: 1630-DCTN, 22612-88, BR-9930

Weight: 0.120

For large orders ($2000+) please inquire by email.
