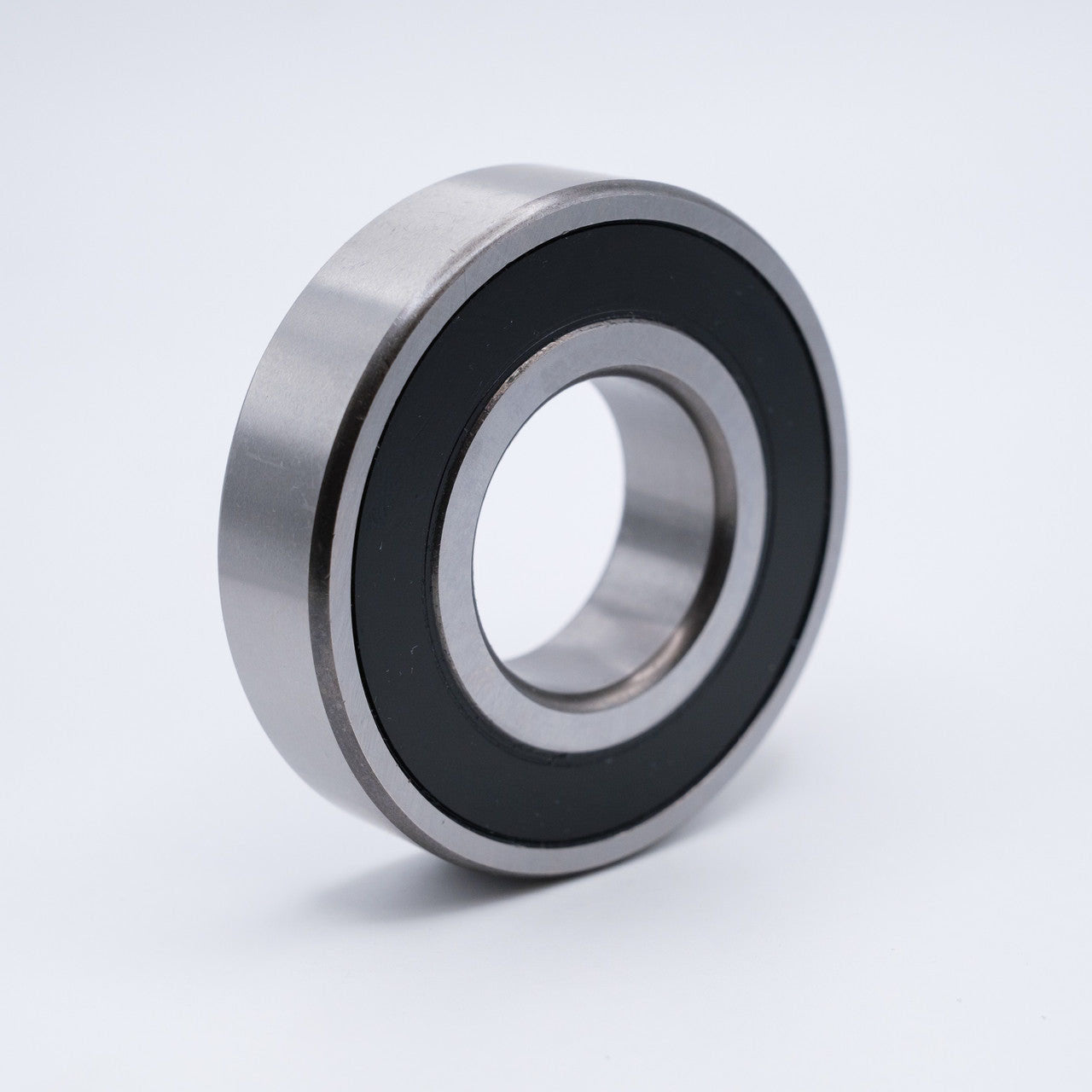

Image is for illustration purposes only.
1633-2RS
The 1633-2RS is a deep groove ball bearing from the 16 series, featuring a 165mm bore diameter and contact rubber seals on both sides. The 2RS designation indicates dual rubber seals that provide protection against contamination while retaining lubrication.
Deep groove ball bearings are versatile radial bearings suitable for applications including electric motors, gearboxes, pumps, and general industrial machinery. The sealed design makes this bearing appropriate for environments where protection from dust and moisture is required.
1633 2RS 1600 Series Ball Bearing
For large orders ($2000+) please inquire by email.
Measurement Type
Imperial
Inner Diameter (ID)
165 mm / 5/8 in
Outside Diameter (OD)
1.75 mm / 1 3/4 in
Width
0.5 mm / 1/2 in
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Series
16
Bearing Type
Deep groove ball bearing
Other Features
Single Row | Deep Groove Ball Bearing | Rubber Seals
Component
Assembly
Weight (kg)
0.092
Basic Number
1633
UNSPSC
31171504
