16100-ZZ
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeRegular price
$10.29 USD
Regular price
Sale price
$10.29 USD
Unit price
per
Couldn't load pickup availability
Bore10 mm
0.3937 in
Outside dia.28 mm
1.1024 in
Width8 mm
0.315 in
TypeDeep groove ball bearing
SealingMetal shields, both sides
ClearanceNormal
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

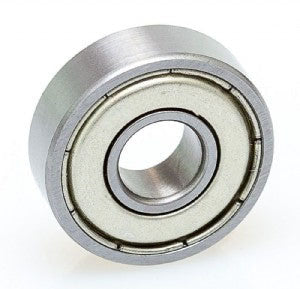

Image is for illustration purposes only.
What 16100-ZZ means
| Code | Position | Meaning |
|---|---|---|
161 |
Series | Series 161: deep groove ball bearing, narrower than the 61-series equivalent of the same bore |
00 |
Bore | Bore code 00 = 10 mm (codes 00, 01, 02 and 03 are fixed at 10, 12, 15 and 17 mm) |
ZZ |
Closure | Metal shields, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
16100-ZZ specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 10 mm | 0.3937 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 28 mm | 1.1024 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Width (B) | 8 mm | 0.315 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Metal shields, both sides | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
16100-ZZ is a deep groove ball bearing, 10 mm bore × 28 mm OD × 8 mm wide (0.3937 × 1.1024 × 0.315 in). It has metal shields on both sides.
The 16100-ZZ is a deep groove ball bearing with metal shields on both sides, featuring a 10 mm bore diameter. The metal shields protect against contaminants while allowing pre-lubricated operation in standard industrial environments.
16100 ZZ 16000 Series Ball Bearing
Measurement Type
Metric
Inner Diameter (ID)
10 mm
Outside Diameter (OD)
28 mm
Width
8 mm
Sealing
Double Shielded
Precision Class
ABEC 1 | ISO P0
Series
161
Bearing Type
Deep groove ball bearing
Other Features
Single Row | Deep Groove Ball Bearing | Metal Shields
Component
Assembly
Weight (kg)
0.03
Basic Number
16100
UNSPSC
31171504
